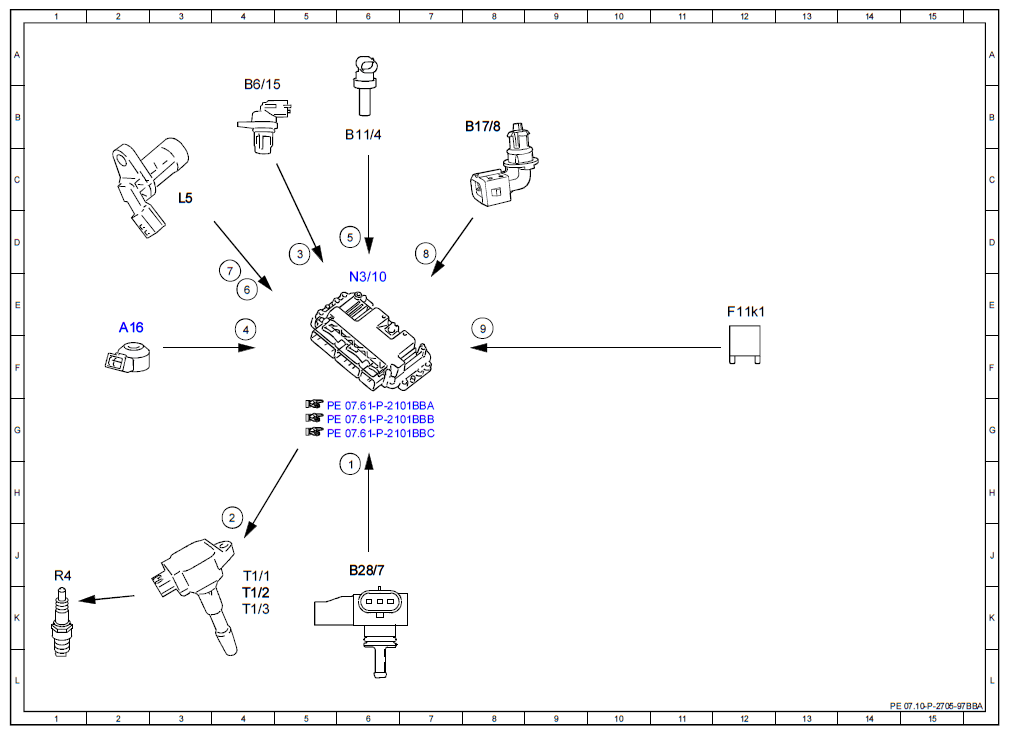

Electrical Function Schematic For Ignition System - PE07.10-P-2705-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 6H |
| 2 | Ignition coils, actuation | 4H |
| 3 | Camshaft Hall sensor, signal | 5D |
| 4 | Knock sensor, signal | 4E |
| 5 | Coolant temperature sensor, signal | 6D |
| 6 | Engine speed, signal | 4E |
| 7 | Crankshaft position sensor, signal | 4E |
| 8 | Charge air temperature sensor, signal | 7D |
| 9 | Circuit 87, status | 8E |
| A16 | Knock sensor | 2E |
| B11/4 | Coolant temperature sensor | 6B |
| B17/8 | Charge air temperature sensor | 8B |
| B28/7 | Pressure sensor downstream of throttle valve | 6J |
| B6/15 | Intake camshaft Hall sensor | 4B |
| F11k1 | Engine function circuit 87 relay | 12E |
| L5 | Crankshaft position sensor | 3C |
| N3/10 | ME-SFI [ME] control unit | 6E |
| R4 | Spark plugs | 1J |
| T1/1 | Cylinder 1 ignition coil | 4J |
| T1/2 | Cylinder 2 ignition coil | 4K |
| T1/3 | Cylinder 3 ignition coil | 4K |
