Remove/Install Start/Stop Switch - AR54.25-P-4000SR
MODEL 453
with CODE B03 (Automatic start/stop)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

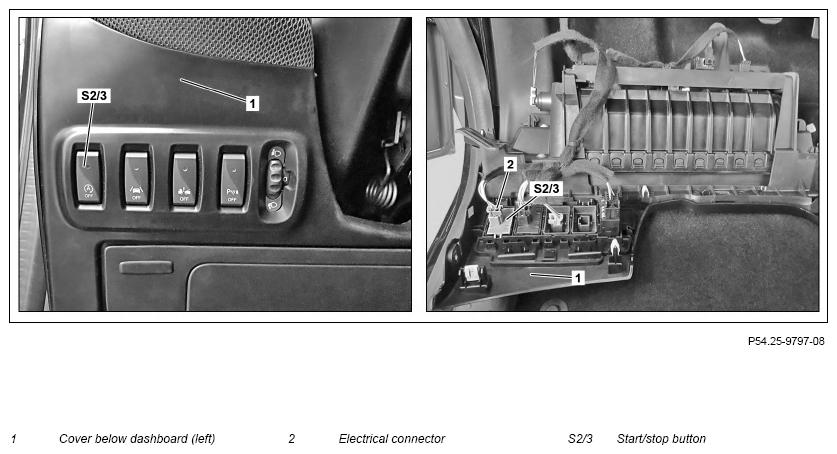

| 1 | Remove cover under instrument panel (left) (1) with electrical connectors connected and place in footwell | Do not put the electrical connector under tension. Damage to the electrical connectors can otherwise occur. |
AR68.10-P-1500SR |
| 2 | Disconnect electrical connector (2) | ||
| 3 | Unclip start/stop button (S2/3) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check automatic start/stop function for proper operation |
