Remove/Install Card Reader On Windshield - AR54.30-P-2000SR

MODEL 453.3/4

with CODE 54P (Line package rental model)

MODEL 453.3/4

with CODE 99O (car2go private/smart services share)

MODEL 453.3

with CODE P02 (car2go)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

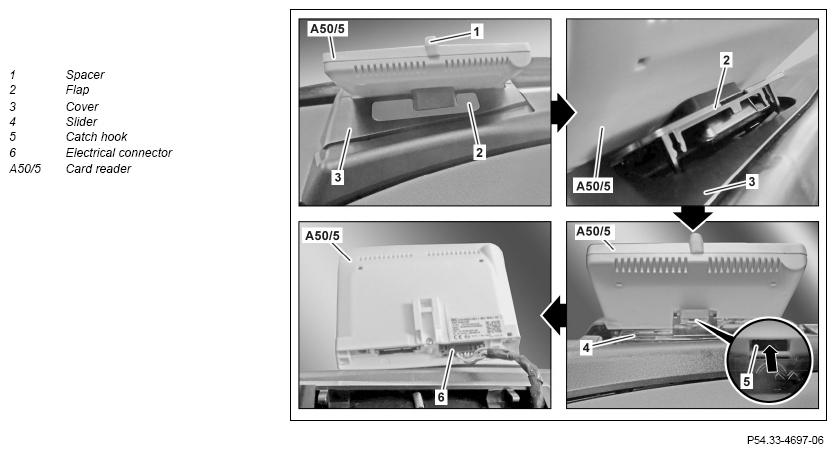

1	Switch off ignition and remove transmitter key from ignition lock
2	Unclip flap (2) from rear catch hooks and set upright	: The spacer (1) must rest on the windshield. Clip remover	Fig 1
3	Unclip cover (3) from front catch hooks, lift and remove towards the rear
4	Pull slider (4) with card reader (A50/5) to the rear as far as the stop	: Push slider (4) with card reader (A50/5) forwards until the spacer (1) rests on the windshield.
5	Release catch hook (5) in direction of arrow and pull out card reader (A50/5) until electrical connector (6) is accessible
6	Disconnect electrical connector (6) and remove card reader (A50/5)
7	Install in the reverse order
8	Perform commissioning of card reader (A50/5) with vehicle diagnosis system	When replacing the card reader (A50/5).
			AD00.00-P-2000-06SR

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
