Powerline Gateway Control Unit, Component Description - GF54.10-P-3014KJE
MODEL 453.091/391/491 with ENGINE 780
Location

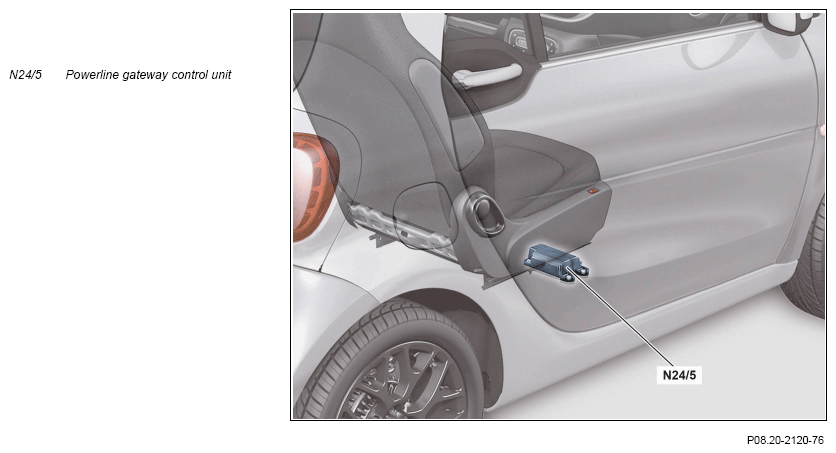

The powerline gateway control unit (N24/5) is installed under the front passenger seat.
Task
The powerline gateway control unit enables the vehicle to be integrated in an intelligent power network. Data are exchanged with the power supply equipment based on the communication protocol specified in ISO/IEC 15118 and this exchange includes data for authentication, invoicing and charge optimization.
Reading in of sensors and signals
Input factors are read in by means of the following connections:
- Direct line
- Telematics CAN (CAN A)
- Electric drive CAN (CAN EL)
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Output of signals and actuation of components
Initial parameter are output over the following connections:
- Direct line
- Telematics CAN (CAN A)
- Electric drive CAN (CAN EL)
Input and output signals
The power line gateway control unit evaluates the following input signals and issues the corresponding output signals:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
| Input factors over a direct line | Initial parameters over a direct line | Supplemental information |
|---|---|---|
| Circuit 30 | - | - |
| Ground connection | - | - |
| Wake-up signal | - | - |
| Control pilot | - | - |
| Input factors via telematics CAN | Output factors via telematics CAN | Supplemental information |
|---|---|---|
| Audio gateway control unit | Audio gateway control unit (N93/1) | - |
| - | Telematics services communications module (N112/2) | - |
| Input factors over electric drive-CAN | Initial parameters over electric drive-CAN | Supplemental information |
|---|---|---|
| Electric drive control unit (N127) | Electric drive control unit (N127) | - |
| - | Charging process monitoring control unit (N83/2) | - |
| - | DC/DC converter control unit (N83/1) | - |
| - | High-voltage charger control unit (N83/5) | - |
| - | Power electronics control unit (N129/1) | - |
| Battery management system control unit (N82/2) | - | - |
Structure
The powerline gateway control unit consists of a plastic housing with one plug connector and an internal control unit.
Ground connection
The "circuit 31" ground connection occurs via a ground line.
Voltage supply
The powerline gateway control unit is supplied with power from "circuit 30 fused".
| Designation | Unit | Values | Tolerance range | Comment |
|---|---|---|---|---|
| Powerline gateway control unit (N24/5) | ||||
| Supply voltage | V | 13.5 | - | - |
| Voltage limits | V | 4... 8 | - | - |
| Reverse polarity protection | - | - | - | Yes |
| Wiring diagram for powerline gateway control unit | PE54.10-P-2109-97BEA |
