Overview Of Energy Management System Components - GF54.10-P-9990KJE

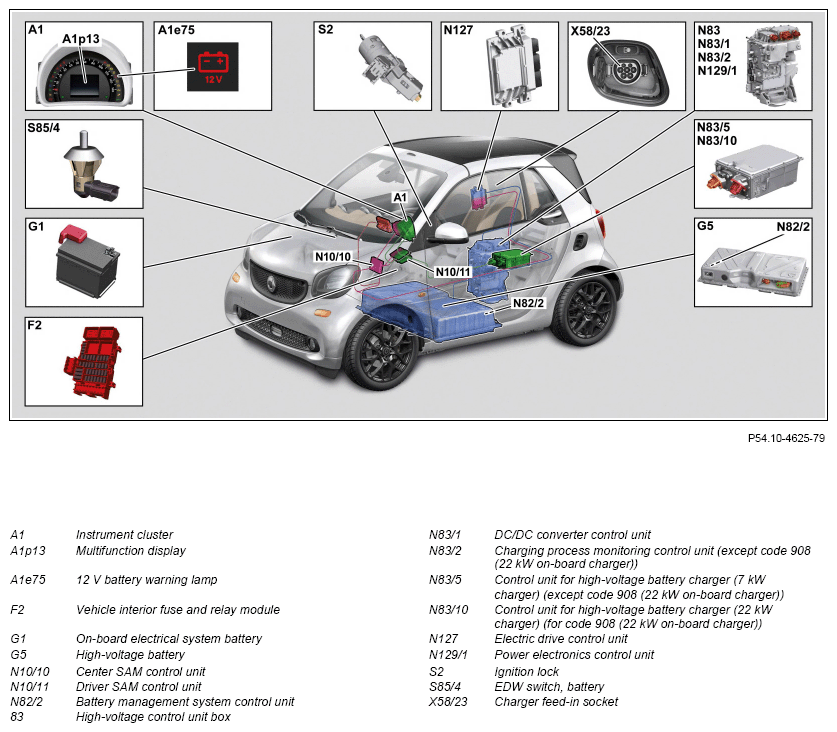

MODEL 453.091/391/491 with ENGINE 780 14 Volt on-board electrical system
| Component description for instrument cluster | Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJE | |
| Component description for high-voltage battery | G5 | GF54.10-P-3004KJE | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| High-voltage control unit box, component description | N83 | GF54.21-P-3057KJE | |
| Component description for DC/DC converter control unit | N83/1 | GF54.10-P-3006KJE | |
| Charge monitoring control unit, component description | Model 453.091/391/491 with engine 780 except code 908 (Bordlader 22kW) N83/2 |
GF54.10-P-3015KJE | |
| High-voltage charger control unit, component description | Model 453.091/391/491 with engine 780 except code 908 (Bordlader 22kW) N83/5 |
GF08.20-P-2000KJE | |
| High-voltage charger control unit, component description | Model 453.091/391/491 with engine 780 with code 908 (Bordlader 22kW) N83/10 |
GF08.20-P-2000KJF | |
| Component description for electric drive control unit | N127 | GF08.20-P-3001KJE | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001KJE | |
| Table of contents for function description of energy management | GF54.10-P-0990KJE |
