Center SAM Control Unit, Component Description - GF54.21-P-7011KJ
MODEL 453.0/3/4
Location

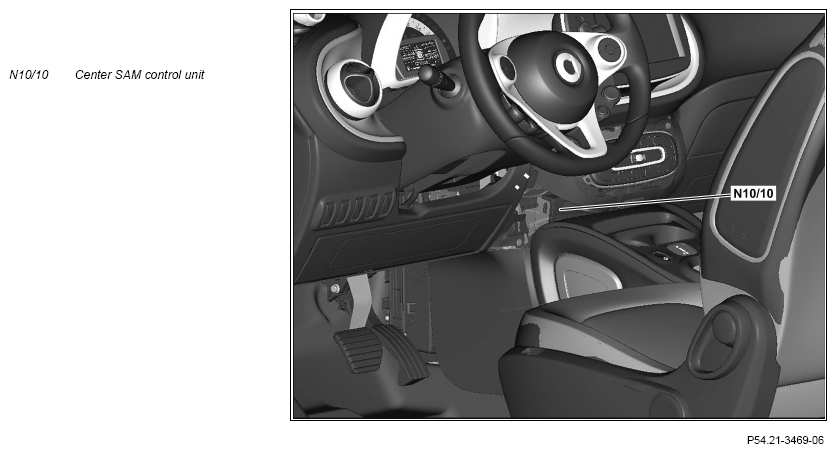

The center SAM control unit is located in middle of instrument panel below the climate control and operating unit (N23) (on vehicles with code I77 (Manual A/C system) or code I78 (Heating system)). With code I01 (Automatic climate control) and with code 453.091/391/491, the center SAM control unit is located under the climate control operating unit (N20).
Task
The center SAM control unit has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Controlling functions
- Actuation of components
- Switching of relays
Reading in of sensors and signals
The input factors are read in over the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The signals from the following components are read via a direct line:
- Transponder coil (L11)
- Front passenger door central locking microswitch (M14/5s1)
- Driver door central locking microswitch (M14/6s1)
- Liftgate central locking microswitch (M14/7s1) (only model 453.0/3)
- Left rear central locking microswitch (M14/8s1), (model 453.0 only)
- Right rear central locking microswitch (M14/9s1), (model 453.0 only)
- Climate control and operating unit (N23) (model 453 (except model 453.091/391/491) with code 177 (Manual A/C system) or code 178 (Heating system))
- Combination switch (S4)
- Windshield wiper system switch (S4/4)
- Instrument panel switch group (S6/1)
- Economy mode switch (S6/10)
- Brake lights switch (S9/1)
- Trunk lid/liftgate release switch (S15/1)
- Driver trunk lid/liftgate control button (S15/3)
- Backup lamp activation/idle recognition switch (S29/5) (with code 410 (Manual transmission, 5-speed))
- Clutch pedal switch (S40/3) (with code 410 (Manual transmission, 5-speed))
- Clutch pedal start enable switch (S40/5) (with code B03 (ECO start/stop function))
- ATA switch, battery (S85/4) (with code V19 (Antitheft alarm system))
- Right trunk lid contact switch (S88/6) (only model 453.3/4)
- Reverse gear engaged signal from electronic selector lever module control unit (N15/5) (vehicles with code 429 (twinamic) and model 453.091/391/491)
Interior CAN
The signals are read in by the center SAM control unit via the interior CAN. The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Controlling functions
The center SAM control unit also controls the following functions:
- Exterior lights
- Power window
- Interior illumination
- Climate control
- Tire pressure monitor
- Windshield wiper system
- Central locking
Actuation of components
The actuation of the components takes place via the following connections:
- Direct line
- Interior CAN
Direct line
The following components are actuated via a direct line:
- Left front ambient light (E1 e23) (with code P25 (LED & sensor package))
- Right front ambient light (E2e23) (with code P25 (LED & sensor package))
- Left rear turn signal lights (E3e1)
- Right rear turn signal lights (E4e1)
- Left turn signal lamp (E6/1)
- Right turn signal lamp (E6/2)
- Front dome lamp with reading lamps (E15/1) (Vehicles as of model year (MY) 2016 with code ICLA (passion), code ICVA (prime), code ICTA (proxy) or code P88 (Edition 1))
- Front dome lamp (E15/2) (all vehicles up to MY 2016 and vehicles as of MY 2016 with code ICPA (standard equipment))
- Load compartment lamp (E18/1) (vehicles with code ICLA (passion), code ICVA (prime), code ICTA (proxy) or code P88 (Edition 1))
- Left additional turn signal lamp (E22/1)
- Right additional turn signal lamp (E22/2)
- Liftgate wiper motor (M6/4) (model 453.0/3)
- Front passenger door central locking actuator motor (M14/5m1)
- Front passenger door additional door lock actuator motor (M14/5m2) (with code 885 (Extended theft protection))
- Driver door central locking actuator motor (M14/6m1)
- Driver door additional door lock actuator motor (M14/6m2) (with code 885 (Extended theft protection))
- Liftgate central locking actuator motor (M14/7m1) (only model 453.0/3)
- Left rear central locking actuator motor (M14/8m1) (model 453.0 only)
- Left rear additional door lock actuator motor (M14/8m2) (model 453.0 only) (with CODE 885 (Extended theft protection))
- Right rear central locking actuator motor (M14/9m1), (model 453.0 only)
- Right rear additional door lock actuator motor (M14/9m2) (model 453.0 only) (with CODE 885 (Extended theft protection))
- Tank cap central locking actuator (M14/10)
- Trunk lid/liftgate lock element (M14/31) (only model 453.4)
- Central locking indicator lamp (S6/1e3) and hazard warning system indicator lamp (S6/1e4) in the instrument panel switch group (S6/1)
Interior CAN
The signals are transmitted by the center SAM control unit via the interior CAN.
The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).
Switching of relays
The following relays are switched by the center SAM control unit:
- Air conditioning power supply solenoid switch (K33)
- Electric heater booster solenoid switch, stage 1 (K16/2) (with code V69 (Heating element for cold countries))
- Electric heater booster solenoid switch, Stage 2 (K16/3) (with code V69 (Heating element for cold countries))
Variants
The center SAM control unit is available in the following national versions:
- Variants for vehicles without code 494 (USA version) or without code 460 (Canada version) and without code 498 (Japan version)
- Variants for vehicles with code 494 (USA version) or code 460 (Canada version)
- Variants for vehicles with code 498 (Japan version)
| Technical data, designation | Unit | Values | Tolerance range | Comment |
|---|---|---|---|---|
| Center SAM control unit | ||||
| Voltage supply | V | 14 | - | |
| Voltage limits | V | < 7 | - | Lower limit value |
| <17 | - | Upper limit value | ||
| Power consumption | mA | 140 | - | Standby without operating current |
| - | - | - | Action | |
| - | - | - | Other actions | |
| mA | 3 | No-load current without technical-based run-on phase | ||
| Reverse polarity protection | - | - | - | Yes |
| Additional specific parameters | - | - | - | No |
| Special features | - | - | - | Resistance to short-circuiting for power supply and charge outputs |
| Flashable/codeable | - | - | - | Yes |
| Voltage | V | 4, 75... 5, 25 |
| Wiring diagram for signal acquisition and actuation module (SAM) control unit | Model 453.0 (except 453.091/391/491), plug S1 | PE54.21-P-2127-97BBB | |
| Model 453.0 (except 453.091/391/491), plug S2, P1, P2 | PE54.21-P-2127-97BBC | ||
| Model 453.091/391/491 | PE54.21-P-2127-97BEB |
