Remove/Install Power Electronics - AR08.20-P-0011SRE

ENGINE 780.997 in MODEL 453.091/391/491

Courtesy of MERCEDES-BENZ USA

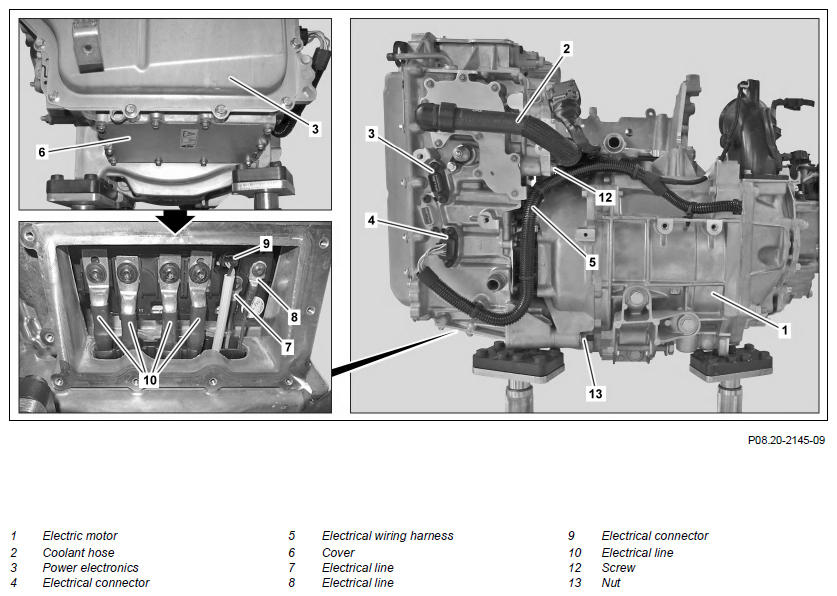

Shown except for code 908 (22 kW on-board charger)

Courtesy of MERCEDES-BENZ USA

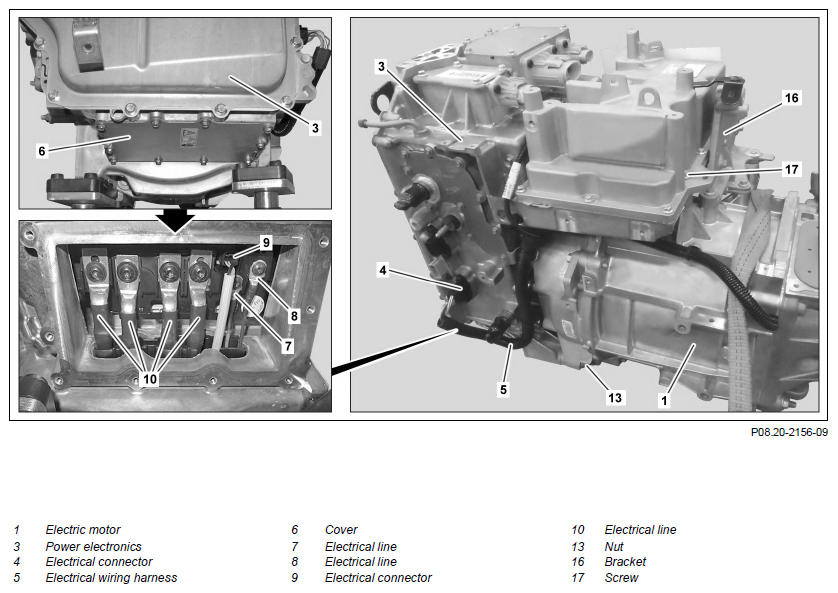

Shown except for code 908 (22 kW on-board charger)

Courtesy of MERCEDES-BENZ USA

Shown except for code 908 (22 kW on-board charger)

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Evaluation of high-voltage components		AH54.00-P-6500-01SXH
	Remove/install
1	Remove electric motor (1) with transmission and the power electronics (3)		AR08.10-P-0001SRE
2	Remove electric motor (1) with the transmission and the power electronics (3) with the aid of a boom crane from the lifting platform, lay on a suitable base and secure against tipping over 000 588 03 62 00 Lifting platform	Secure electric motor (1) with transmission and the power electronics (3). Otherwise the assembly parts can be damaged. Helper required.	WS01.00-P-0091A
3	Remove coolant hose (2) at the power electronics (3)	Engine 780.997 in model 453.091/391/491 except code 908 (On-board charger 22kW)
4	Disconnect electrical connection (4)
5	Expose electrical wiring harness (5)
6	Take off cover (6)	Replace seal on cover (6). Bolt, cover to power electronics	*BA08.10-P-1005-03A
7	Disconnect electrical connection (9)	Carefully detach the electrical connection (9). Danger exists of the electrical connection (9).
8	Mark electrical lines (7, 8, 10)
9	Remove electrical lines (7, 8)	Note the attached note markings. Bolt, electric line (excitation) to power electronics	*BA08.10-P-1008-03A
10	Remove electrical lines (10)	Note the attached note markings. Bolt, electric line (Phase/Neutral) to power electronics	*BA08.10-P-1007-03A

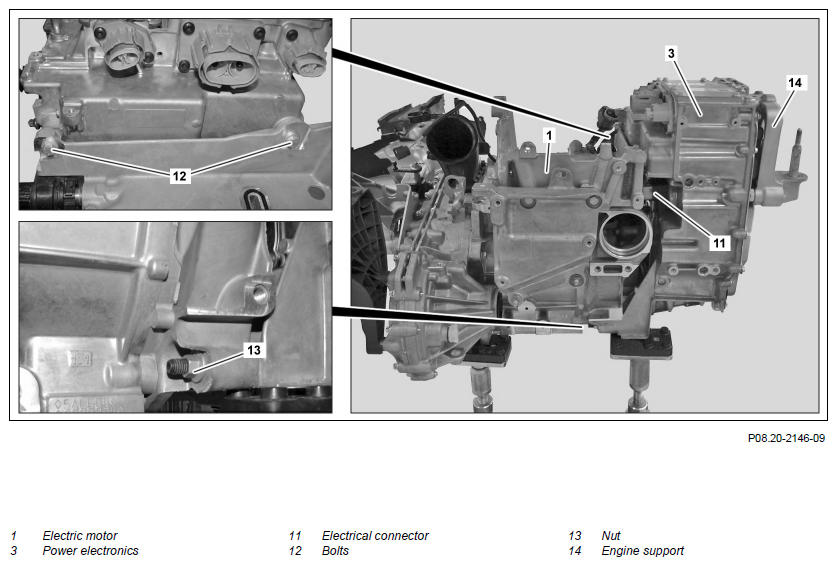

11	Disconnect electrical connection (11) and close off with protective cover	Engine 780.997 in model 453.091/391/491 except code 908 (On-board charger 22kW)	AR54.00-P-0051-01SRE
		Set of protective covers	Figure
12	Remove screw/bolts (12)	Engine 780.997 in model 453.091/391/491 except code 908 (On-board charger 22kW) Bolt, bracket for charger for high-voltage battery to power electronics	*BA08.10-P-1003-02A
13	Remove holder (16)	Engine 780.997 in model 453.091/391/491 with code 908 (On-board charger 22kW) Screw, holder to power electronics/electric motor	*BA08.10-P-1001-01D
14	Remove screw/bolt (17)	Engine 780.997 in model 453.091/391/491 with code 908 (On-board charger 22kW) Bolt, power electronics to electric motor	*BA08.10-P-1007-01D
15	Unbolt nuts (13)	Nut, power electronics to electric motor	*BA08.10-P-1001-03A
16	Remove power electronics (3) from electric motor (1)	Helper required.
17	Remove the right engine support (14) from the power electronics (3)	Only if power electronics (3) installed new. Bolt/nut, engine carrier to power electronics	*BA22.10-P-1009-01H

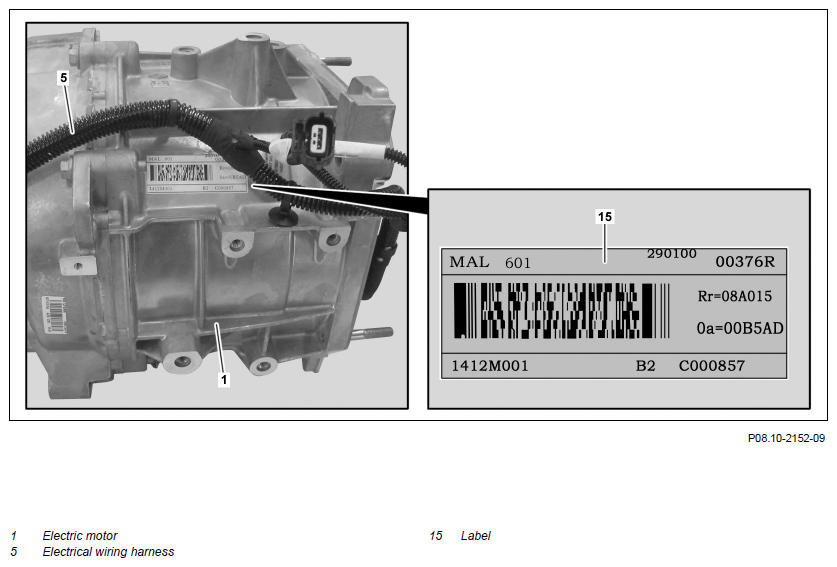

18	Read off "Rr" and "0a" values of label (15) from electric motor (1) and note	Only if power electronics (3) installed new. Values on label (15) are required to align rotor position sensor, and are no longer legible after installation of electric motor (1).
19	Install in the reverse order
20	Perform calibration of the rotor position sensor with diagnostic system	If the power electronics (3) were replaced.	AD00.00-P-2000-06SR

Fig 1: Identifying Set Of Protective Covers (001 589 01 91 00)

Courtesy of MERCEDES-BENZ USA
