Remove/Install Electric Machine Rotor Position Sensor - AR08.10-P-0003SRE
ENGINE 780.997 in MODEL 453.091/391/491
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003SR | |
| 2 | Remove the transmission | AR26.10-P-0020SRE | |

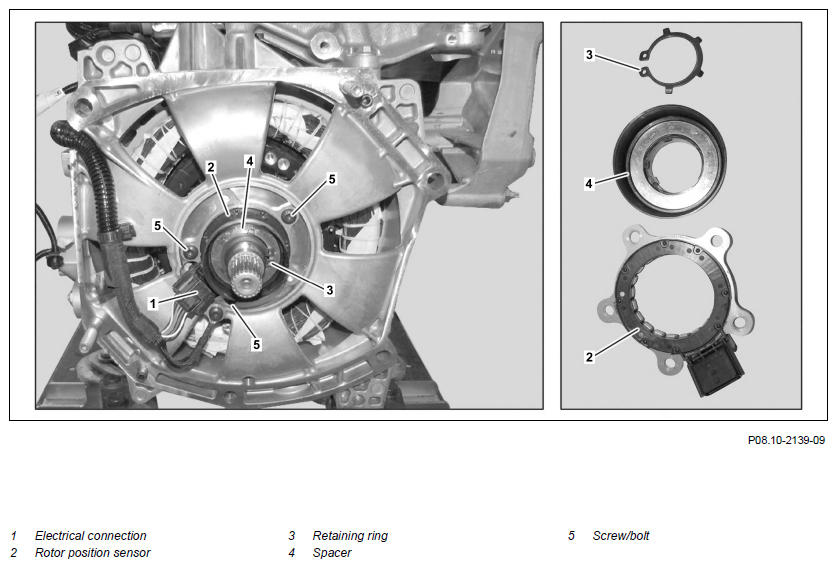

| 3 | Disconnect electrical connection (1) | ||
| 4 | Remove retaining ring (3) | ||
| 5 | Remove spacer (4) | ||
| 6 | Remove screw/bolts (5) | *BA08.10-P-1003-01D | |
| 7 | Remove rotor position sensor (2) | ||
| 8 | Install in the reverse order | ||
| 9 |
Perform a calibration of the rotor position sensor (2) with diagnostic system | If the rotor position sensor (2) was replaced. | AD00.00-P-2000-06SR |
ELECTRIC MOTOR
| Number | Designation | Engine 780.997 in model 453 | |
|---|---|---|---|
| BA08.10-P-1003-01D | Bolt, position sensor to electric motor | Nm | 10 |
