Overview Of System Components For An Electrical Vehicle - GF08.00-P-9999KJE
MODEL 453.091/391/491 with ENGINE 780

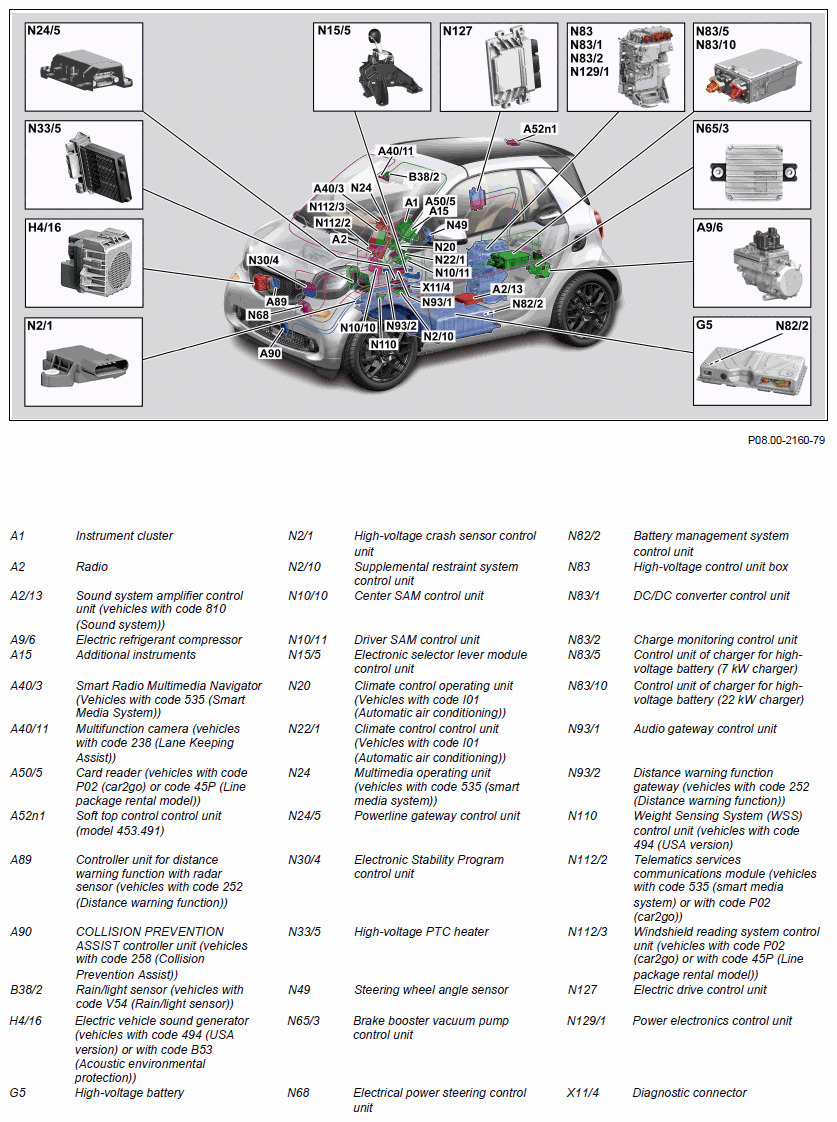

Shown on model 453.491

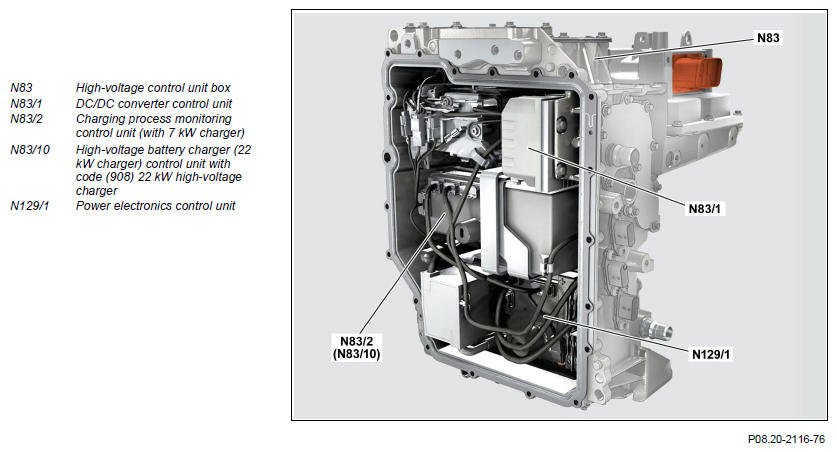

Control units installed in high-voltage control unit box

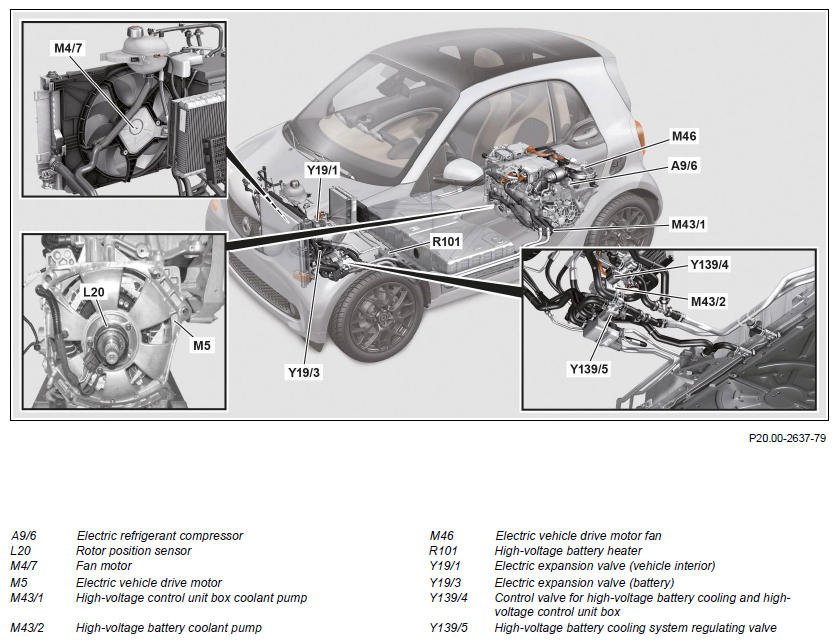

Cooling circuit components with battery cooling system (code V03)
| Electric vehicle sound generator, component description | H4/16 | GF08.00-P-3004KJE | |
| Component description for electric motor, | M5 | GF08.10-P-1000KJE | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001KJE | |
| High-voltage charger control unit, component description | Engine 780 in model 453.091/391/491 except code 908 (Bordlader 22kW) N83/5 | GF08.20-P-2000KJE | |
| Engine 780 in model 453.091/391/491 with code 908 (Bordlader 22kW) N83/10 | GF08.20-P-2000KJF | ||
| Component description for electric drive control unit | N127 | GF08.20-P-3001KJE | |
| Crash sensor, high-voltage battery, component description | N2/1 | GF08.20-P-4111KJE | |
| Component description for the fan motor | M46 | GF20.20-P-1000KJE | |
| Component description for electronic selector lever module control unit | N15/5 | GF27.60-P-5163KJE | |
| Vacuum pump control unit component description | N65/3 | GF43.05-P-1210KJE | |
| Component description for high-voltage battery | G5 | GF54.10-P-3004KJE | |
| Component description for DC/DC converter control unit | N83/1 | GF54.10-P-3006KJE | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012KJE | |
| Powerline gateway control unit, component description | N24/5 | GF54.10-P-3014KJE | |
| Charge monitoring control unit, component description | Engine 780 in model 453.091/391/491 except code 908 (Bordlader 22kW) N83/2 | GF54.10-P-3015KJE | |
| High-voltage control unit box, component description | N83 | GF54.21-P-3057KJE | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Component description for instrument cluster | Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJE | |
| Audio gateway control unit, component description | N93/1 | GF82.62-P-3119KJ | |
| Component description for electric refrigerant compressor | Model 453.091/391/491 with code I01 (Automatic air conditioning) A9/6 | GF83.55-P-2110KJE | |
| High-voltage PTC heater, component description | N33/5 | GF83.70-P-4065KJE |
