Remove/Install Front Axle Transverse Control Arm - AR33.20-P-1452SR
MODEL 453
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||

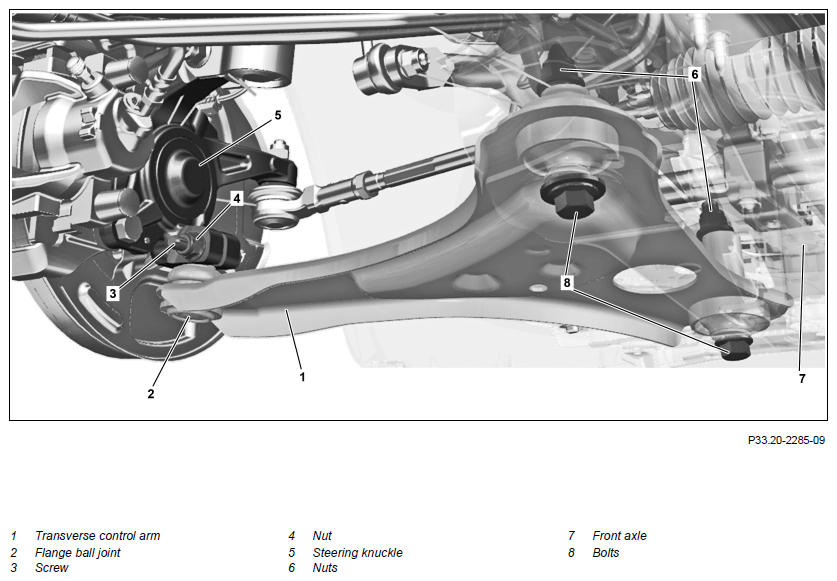

| 1 | Remove left or right front wheel | AR40.10-P-1100SR | |
| 2 | Counterhold nut (4) with a suitable tool and remove screw/bolt (3) | *BA33.25-P-1001-01F | |
| 3 | Brace steering knuckle (5) with a suitable tool and unhook flange ball joint (2) | ||
| 4 | Counterhold nuts (6) with a suitable tool and remove screws/bolts (8) | *BA33.15-P-1001-01F | |
| 5 | Remove transverse control arm (1) | ||
| Check | |||
| 6 | Check boot at flange ball joint (2) for good condition | If there are problems ↓ Replace transverse control arm (1) |
|
| 7 | Install in the reverse order |
TRAILING ARMS, TRANSVERSE CONTROL ARMS
| Number | Designation | Model 453 | |||
|---|---|---|---|---|---|
| BA33.15-P-1001-01F | Screw/bolt, transverse control arm to front axle carrier | M12 | 105 | ||
| M14 | Stage 1 | Nm | - | ||
| Stage 2 | ∠° | - | |||
AXLE HOUSING, STEERING KNUCKLE
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA33.25-P-1001-01F | Bolt, flange ball joint to steering knuckle | Nm | 62 |
