Remove/Install Electronic Stability Program (ESP®) Control Unit - AR42.45-P-0820SR
MODEL 453
MODIFICATION NOTES
| 28.02.2017 | If, when replacing the control unit, several control units are shown in the EPC, an XSF ticket must be created to enable the part number to be accurately identified. |
| Remove/install | |||

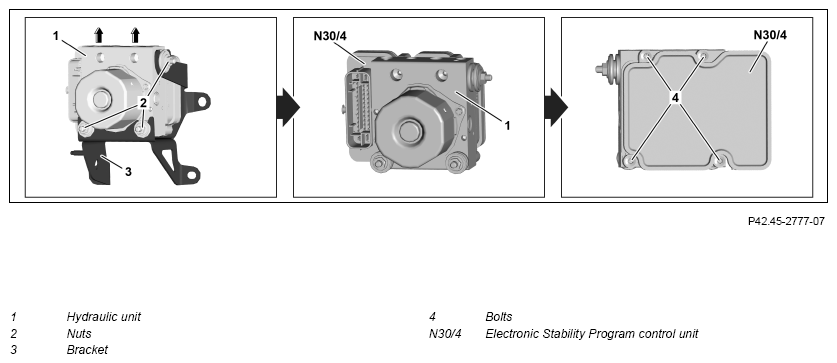

| 1 | Remove hydraulic unit (1) | AR42.45-P-0817SR | |
| 2 | Loosen nuts (2) | *BA42.45-P-1002-01P | |
| 3 | Remove hydraulic unit (1) from bracket (3) in direction of arrow | ||
| 4 | Remove screws (4) | *BA42.45-P-1003-01P | |
| 5 | Detach Electronic Stability Program control unit (N30/4) from hydraulic unit (1) | If, when replacing the control unit, several control units are shown in the EPC. ↓ Create XSF ticket for correct part number identification. |
|
| Clean | |||
| 6 | Clean sealing surface on hydraulic unit (1) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 7 | Install in the reverse order | ||
| 8 |
Carry out calibration of the Electronic Stability Program control unit (N30/4) with diagnostic system | When replacing Electronic Stability Program control unit (N30/4). | AD00.00-P-2000-06SR |
ELECTRONIC STABILITY PROGRAM (ESP®)
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA42.45-P-1002-01P | Nut, bracket to hydraulic unit | Nm | 8 |
ELECTRONIC STABILITY PROGRAM (ESP®)
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA42.45-P-1003-01P | Bolt, ESP® control unit to hydraulic unit | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
