Remove/Install Windshield - AR67.10-P-1700SR

MODEL 453

MODIFICATION NOTES

12.09.2018 Operation step 28, adapted If new windshield (1) was installed, a new housing of the rain and light sensor must be installed.
06.04.2017 Frame support under windshield with support 453 589 00 40 00 added.

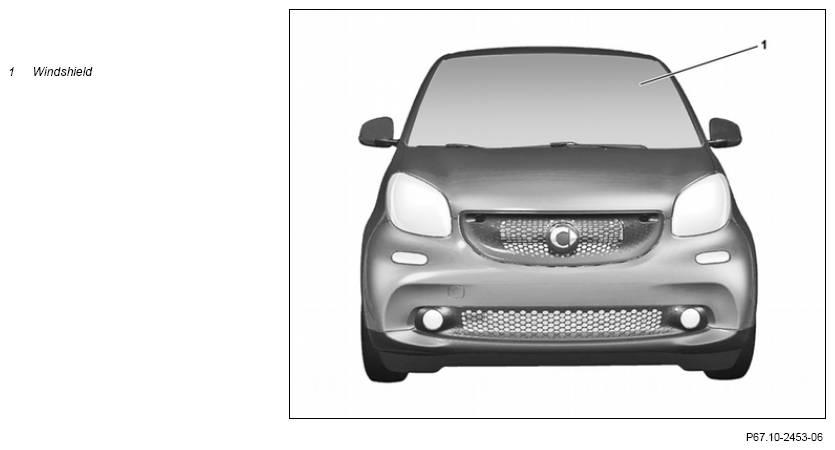

G12096080Courtesy of MERCEDES-BENZ USA
G12096081Courtesy of MERCEDES-BENZ USA
WARNING Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). AS82.30-Z-0001-01A
  Notes on removal/installation of windshield   AH67.10-P-1000-01P
REMOVING Remove
1 Open side window in driver door NOTES The side window should remain open during the curing time.
Otherwise the windshield (1) can be pressed toward outside by the air when a door is closed.

2 Prepare adhesive kit according to instructions of adhesive material manufacturer IMPORTANTCommercially available devices/tools
Electric cartridge gun
Glazing set
*BR00.45-Z-1168-02A
3 Remove air-water duct   AR83.25-P-1410SR

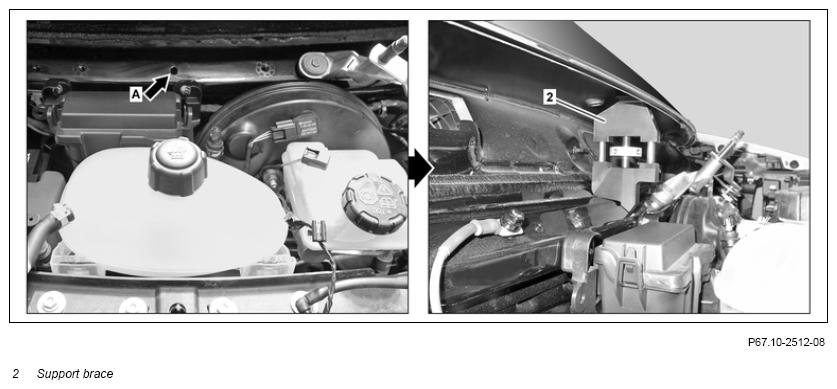

4 Insert support (2) in bore (arrow A) and attach on frame of windshield (1) with zero clearance SPECIAL TOOL Support brace Fig 2
5 Remove transmitter key
6 Remove trim from left and right A-pillar   AR68.30-P-4050SR
7 Protect instrument against damage with suitable cover
8 Remove rain/light sensor Model 453
with code V54 (Rain/light sensor)
AR82.30-P-7800SR
9 Remove multifunction camera Model 453
with code 238 (Active lane keeping Assist)
AR54.21-P-3000SR
10 Remove inside rearview mirror   AR68.40-P-0001SR
WARNING Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows Wear protective gloves and safety glasses. AR67.10-P-1000-11SR
11 Cut out windshield (1) with window removal tool IMPORTANT A helper is required for removal of windshield (1) from body flange. AS67.00-Z-0004-01A
INSPECT Check
12 Check bonding area on body flange for paint chipping
Notes on repair paintwork in bonding area of windows and components
In the event of complaints

Repair damage with approved materials.
AH98.00-P-9408-07MCC
INSTALLING Install
13 Level residual adhesive material on body flange using a suitable scraper to a height of approx. 2 mm and remove loose residual adhesive material
14 Prepare body flange for windshield installation according to instructions of adhesive material manufacturer
Notes on repair paintwork in bonding area of windows and components
  AH98.00-P-9408-07MCC
Glazing set *BR00.45-Z-1168-02A
Primer stick *BR00.45-Z-1012-07A
15.1 Level residual adhesive material on windshield (1) using a suitable scraper to a height of approx. 2 mm and remove loose residual adhesive material If windshield (1) is reinstalled.
15.2 Transfer detachable parts on windshield (1) When replacing windshield (1).
16 Prepare windshield (1) for installation according to instructions of adhesive material manufacturer Glazing set *BR00.45-Z-1168-02A
17 Replace rubber spacer disks on windshield IMPORTANT Do not yet remove upper protective foil. AR67.10-P-1700-06SR
18 Align windshield (1) in body opening IMPORTANT Model 453.3/4
Windshield (1) must be centered in body opening.
IMPORTANT Aid of helper required.
AR67.10-P-1000-09SR
Model 453.0 Windshield to A-pillar *BE60.00-P-1010-01CA
Model 453.0 Windshield to roof paneling *BE60.00-P-1011-01CA
SPECIAL TOOL Feeler gauge Fig 1
19 Remove protective foil from rubber spacers
20 Apply glue to body flange NOTES
Windshield (1) must be mounted on body flange within time specified by adhesive material manufacturer.
Otherwise the adhesive force of the adhesive material starts to decrease.
AR67.10-P-1000-08SR
Glazing set *BR00.45-Z-1168-02A
SPECIAL TOOL Adapter Fig 3
21 Install windshield (1) IMPORTANT Aid of helper required. AR67.10-P-1700-05SR
22 Fix windshield (1) in place with suitable adhesive tape
23 Release and remove support (2) NOTES Only initially remove support (2) once adhesive material has achieved endurance strength.
Otherwise distortions or noise can arise when driving and a secure bonding is no longer ensured.

24 Remove cover from dashboard
25 Install paneling on left and right A-pillar   AR68.30-P-4050SR
26 Install air/water duct   AR83.25-P-1410SR
27 Install multifunction camera Model 453
with code 238 (Active lane keeping Assist)
AR54.21-P-3000SR
28 Install rain/light sensor Model 453 with code V54 (Rain/light sensor)
IMPORTANT If new windshield (1) was installed, a new housing of the rain and light sensor must be installed.
AR82.30-P-7800SR
29 Install inside rearview mirror   AR68.40-P-0001SR
30 Close side window on driver door
INSPECT Check
31 REFER TO SELF-DIAGNOSTIC SYSTEMS Read out and erase fault memory using the diagnostic system   AD00.00-P-2000-06SR
CLEANING Clean
32 Remove all attached adhesive tapes
33 Clean area to be repaired
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 453.0
BE60.00-P-1010-01CA Windshield to A-pillar Dimension "H2" mm 3 (±1, 5)
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 453.0
BE60.00-P-1011-01CA Windshield to roof paneling Dimension "H3" mm 3 (±1, 5)
Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
G11129153Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Support Brace (453 589 00 40 00)
G12096083Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Adapter (000 589 86 63 00)
G11129044Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1012-07A Primer stick A 000 986 27 50
BR00.45-Z-1168-02A Glazing set A 453 989 05 00
