Remove/Install Liftgate Unlocking Switch - AR72.20-P-2558SRC

MODEL 453.4

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install

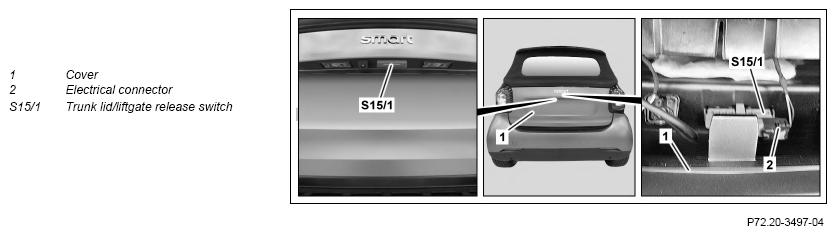

1	Loosen paneling (1) on outside of liftgate until trunk lid/liftgate release switch (S15/1) is accessible		AR72.20-P-1016SRA
2	Release and disconnect electrical connection (2)
3	Release trunk lid/liftgate release switch (S15/1) from inside, and pull outwards to remove
4	Install in the reverse order
	Check
5	Check function of trunk lid/liftgate release switch (S15/1) by mechanically locking liftgate latches
