Remove/Install Inner Cover On Liftgate - AR72.20-P-0004SRC

MODEL 453.4

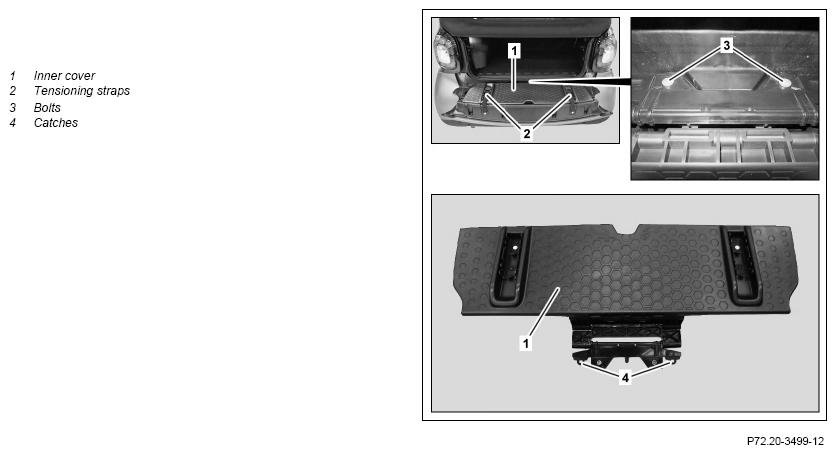

G12096267
REMOVINGINSTALLING Remove/Install
1 Open liftgate
2 Open tensioning straps (2)
3 Remove bolts (3)
4 Open inner cover (1) and pull upward to remove INSTALLATION IMPORTANT : Catches (4) must audibly click into place.
5 Install in the reverse order
