Remove/Install Fender Liner In Front Fender - AR88.10-P-1300SRA
MODEL 453.3/4
Shown on removed front wheel
| Remove/install | |||
| 1 | Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Lift vehicle on vehicle lift |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |

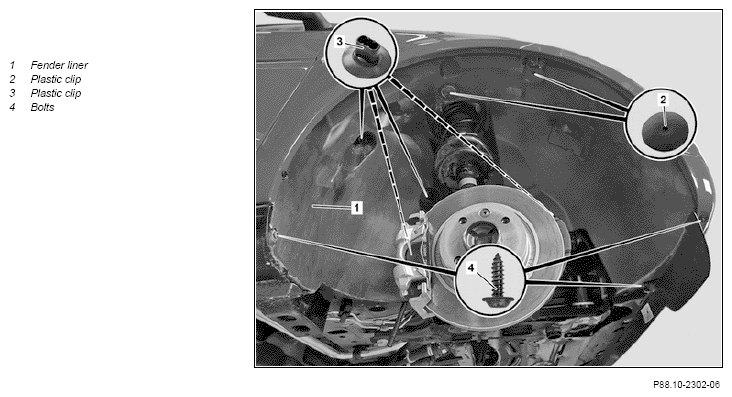

| 2 | Remove plastic clips (2) | Fig 1 | |
| 3 | Remove plastic clips (3) | Fig 1 | |
| 4 | Turn steering on front wheel | ||
| 5 | Unscrew bolts (4) | ||
| 6 | Pull outer edge of fender liner (1) toward inside out of wheel arch lip and remove fender liner (1) downward | ||
| 7 | Install in the reverse order |
