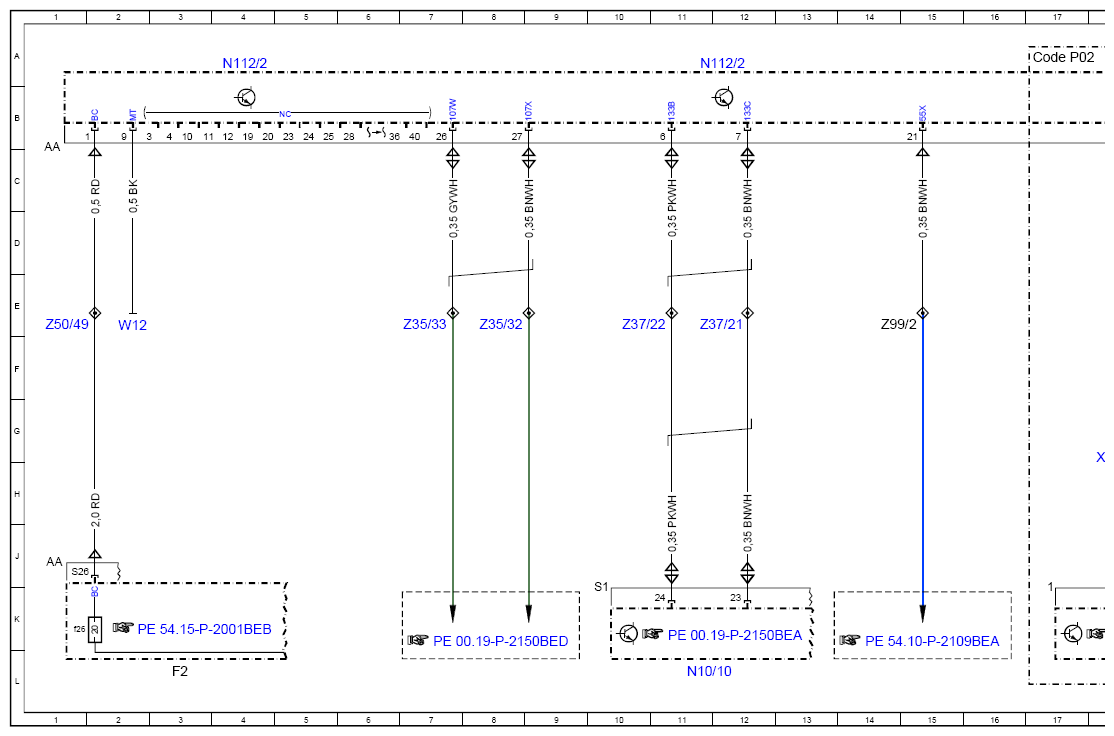

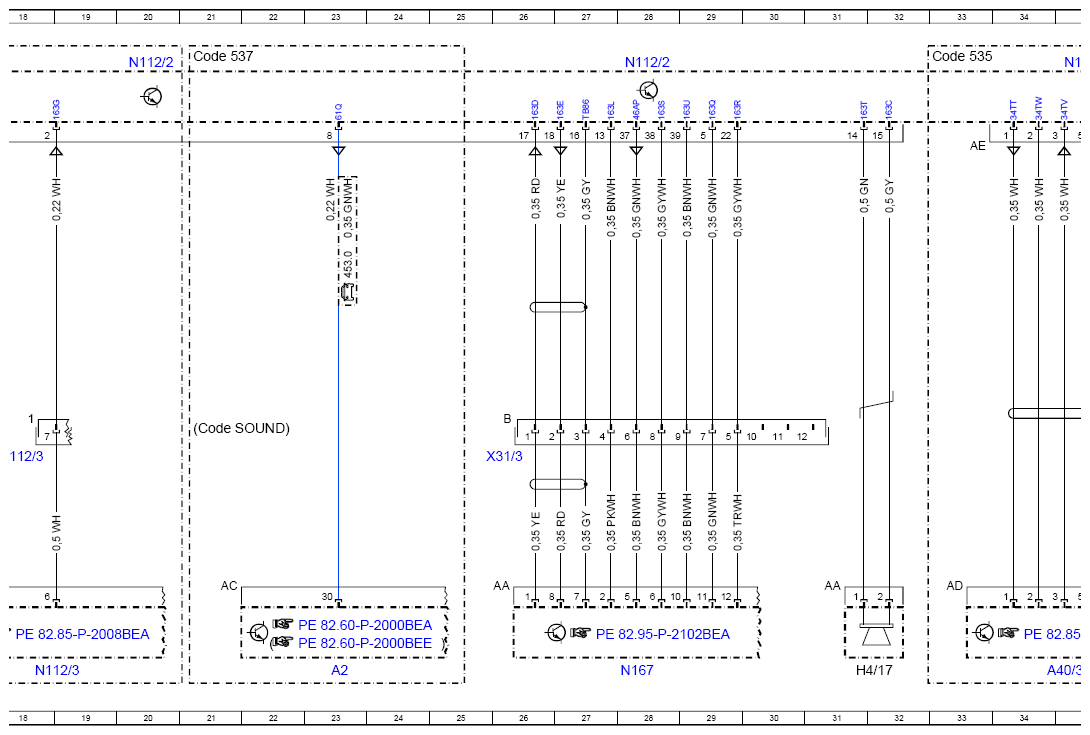

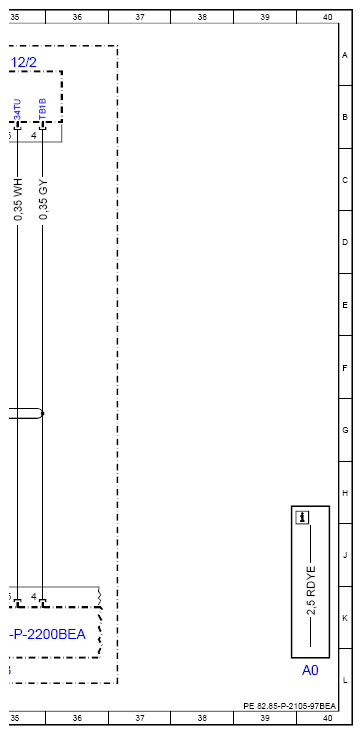

Wiring Diagram For Telematics Services Communications Module Control Unit - PE82.85-P-2105-97BEA
MODEL 453.091/391/491 up to model year 2020 with CODE 535 (smart Media system) with CODE P02 (car2go)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A2 | Radio | 23L |
| A40/3 | smart radio multimedia navigator | 35L |
| Code 535 | Smart Media System | 33A |
| Code 537 | Smart Audio System | 21A |
| Code P02 | car2go | 17A |
| Code SOUND | JBL sound system | 21G |
| F2 | Vehicle interior fuse and relay module | 3L |
| F2f26 | Fuse 26 | 1K |
| H4/17 | eCall Russia (GLONASS) speaker | 31L |
| N10/10 | Center SAM control unit | 11L |
| N112/2 | Telematics services communication module | 4A |
| N112/2 | Telematics services communication module | 11A |
| N112/2 | Telematics services communication module | 20A |
| N112/2 | Telematics services communication module | 28A |
| N112/2 | Telematics services communication module | 35A |
| N112/3 | Windshield reading system control unit | 18L |
| N167 | E-Call Russia (GLONASS) control unit | 28L |
| W12 | Ground point (center console) | 2E |
| X112/3 | Main wiring harness/Car2Go wiring harness electrical connector | 18H |
| X31/3 | Dome lamp electrical connector | 26H |
| Z35/32 | Diagnostic CAN (low) connector sleeve, multimedia | 8E |
| Z35/33 | Diagnostic CAN (high) connector sleeve, multimedia | 7E |
| Z37/21 | CAN bus (low) connector sleeve | 12E |
| Z37/22 | CAN databus (high) connector sleeve | 10E |
| Z50/49 | Circuit 30 (fused) connector sleeve | 1E |
| Z99/2 | Wake-up signal connector sleeve | 14E |
