Remove/Install Central Locking Element Socket For Charger Feed - AR80.20-P-2350SRE
MODEL 453.091/391/491
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove transmitter key | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Lift vehicle with vehicle lift | ||
| 3 | Remove right rear fender liner | Model 453.091 | AR88.10-P-1400SR |
| Model 453.391/491 | AR88.10-P-1400SRA | ||

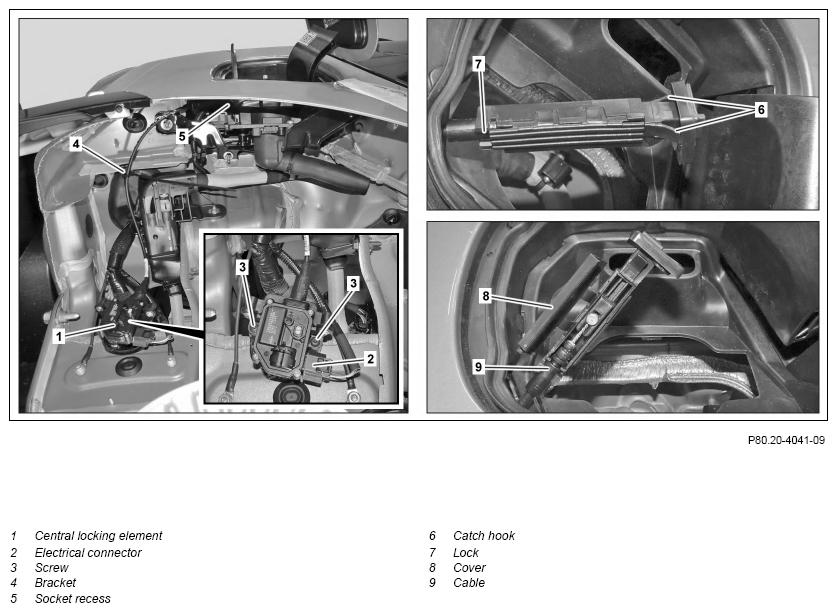

| 4 | Disconnect electrical connector (2) from central locking element (1) | ||
| 5 | Unlock catch hook (6) and push lock (7) out of socket recess (5) | ||
| 6 | Open cover (8) of lock (7) as shown and remove cable (9) from lock (7) | ||
| 7 | Remove bracket (4) | ||
| 8 | Unscrew bolts (3) and guide central locking element (1) out together with cable (9) and remove | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check socket flap lock for proper function |
