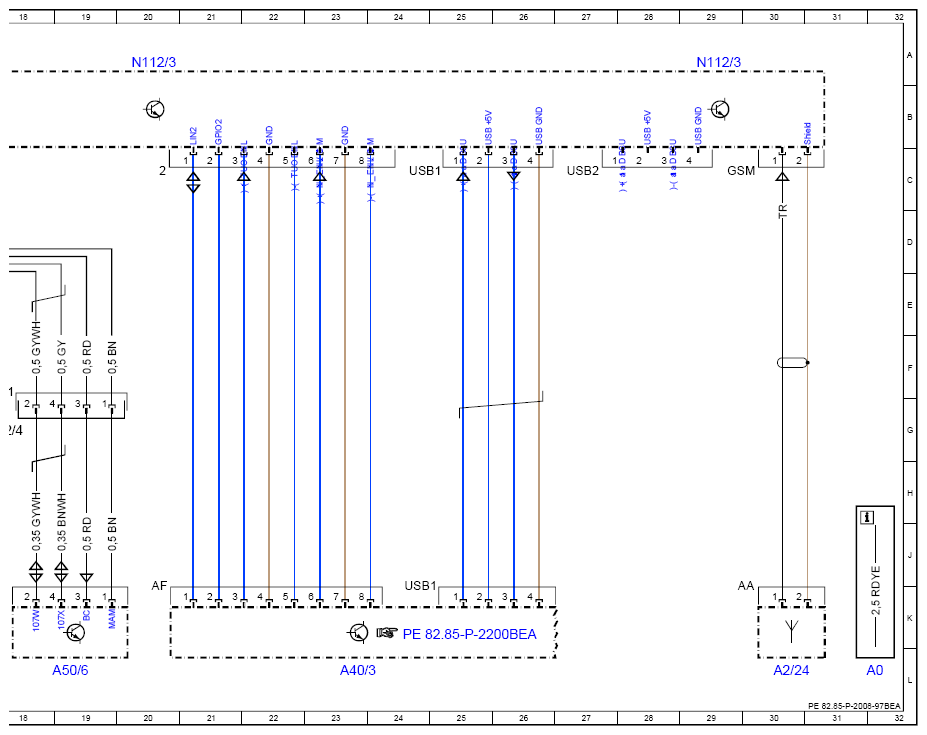

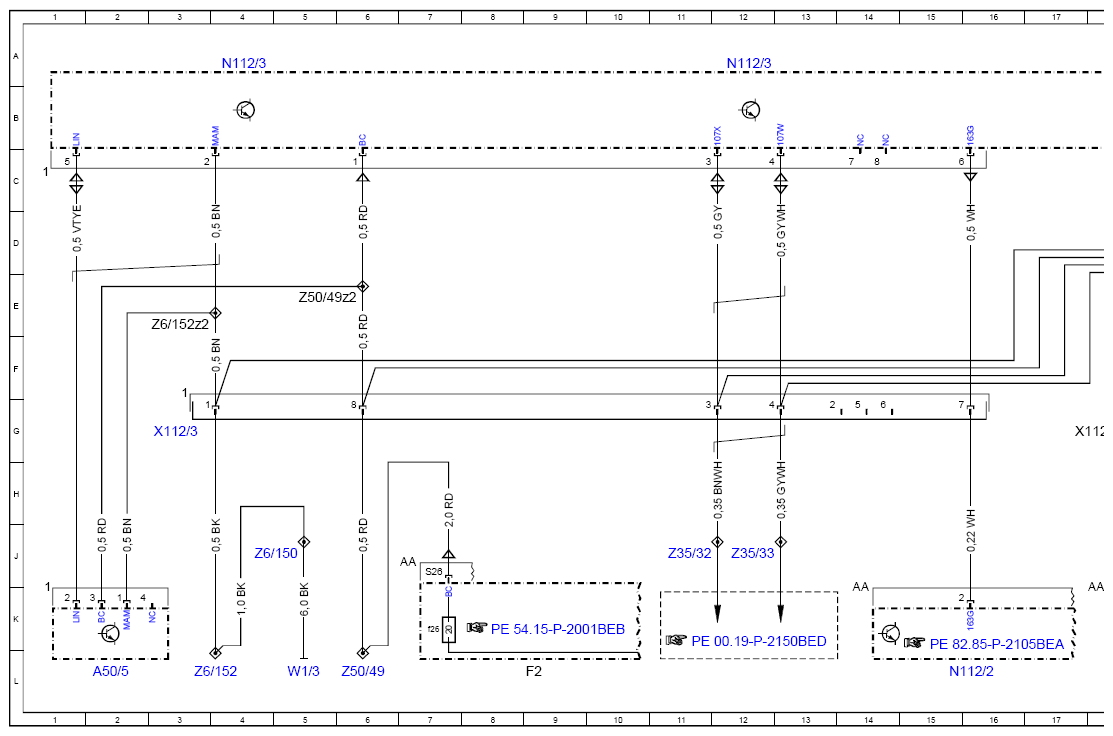

Wiring Diagram Of Windshield Reading System Control Unit - PE82.85-P-2008-97BEA
MODEL 453.091/391/491 up to model year 2020 with CODE P02 (car2go)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A2/24 | GSM/UMTS antenna | 30L |
| A40/3 | smart radio multimedia navigator | 23L |
| A50/5 | Card reader | 2L |
| A50/6 | Windshield reader system access electronic key box | 19L |
| F2 | Vehicle interior fuse and relay module | 9L |
| F2f26 | Fuse 26 | 7K |
| N112/2 | Telematics services communication module | 15L |
| N112/3 | Windshield reading system control unit | 4A |
| N112/3 | Windshield reading system control unit | 12A |
| N112/3 | Windshield reading system control unit | 20A |
| N112/3 | Windshield reading system control unit | 29A |
| W1/3 | Left cockpit ground point | 5L |
| X112/3 | Main wiring harness/Car2Go wiring harness electrical connector | 3G |
| X112/4 | Main wiring harness/windshield reader system wiring harness electrical connector | 18G |
| Z35/32 | Diagnostic CAN (low) connector sleeve, multimedia | 11J |
| Z35/33 | Diagnostic CAN (high) connector sleeve, multimedia | 12J |
| Z50/49 | Circuit 30 (fused) connector sleeve | 6L |
| Z50/49z2 | Circuit 30 (fused) connector sleeve | 5E |
| Z6/150 | Ground connection connector sleeve | 5J |
| Z6/152 | Ground connection connector sleeve | 3L |
| Z6/152z2 | Ground connection connector sleeve | 3E |
