Remove/Install Radio - AR82.60-P-7502SRA
MODEL 453
with CODE 535 (smart Media system)
except CODE 537 (smart Audio system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

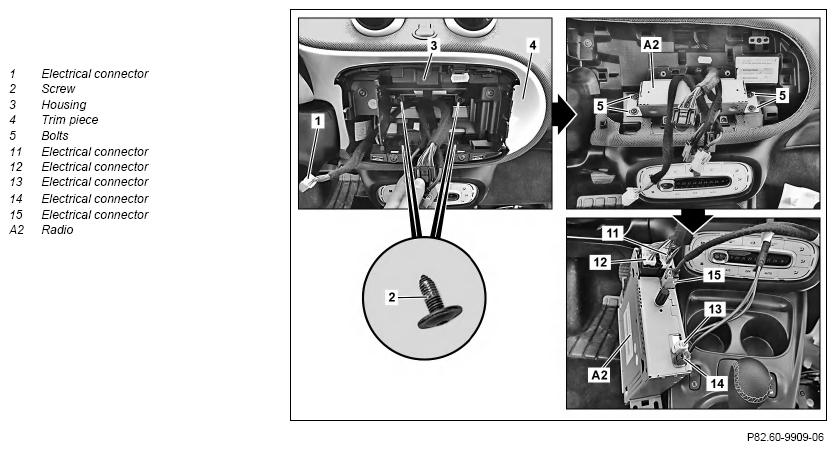

| 1 | Remove communication unit | AR82.85-P-2000SR | |
| 2 | Disconnect electrical connector (1) from cover and remove cover | ||
| 3 | Remove screws (2) | ||
| 4 | Remove housing (3) from communication unit | ||
| 5 | Unclip trim element (4) on instrument panel and remove | ||
| 6 | Remove screws/bolts (5) | ||
| 7 | Pull radio (A2) far enough out of instrument panel to gain access to the electrical connectors (11, 12, 13, 14, 15) | ||
| 8 | Disconnect electrical connector (11, 12, 13, 14, 15) and remove radio (A2) | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check radio (A2) for proper operation |
