Remove/Install Radio - AR82.60-P-7502SR
MODEL 453
with CODE 537 (Audio system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Connect diagnostic unit and perform initial startup of the radio (A2) | When replacing the radio (A2). | AD00.00-P-2000-06SR |

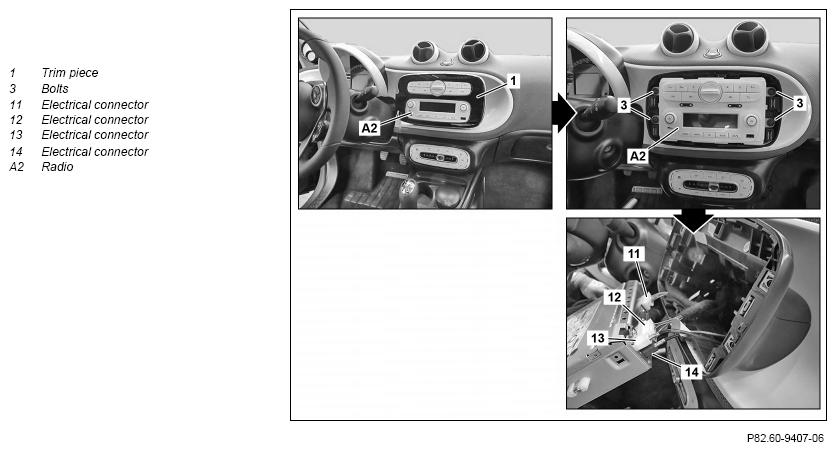

| 2 | Undip trim piece (1) | Figure | |
| 3 | Remove screws/bolts (3) | ||
| 4 | Remove radio (A2) from the instrument panel far enough for the electrical connectors (11, 12, 13, 14) to be accessed | ||
| 5 | Disconnect electrical connectors (11, 12, 13, 14) and remove radio (A2) from the vehicle | ||
| 6 | Install in the reverse order |
