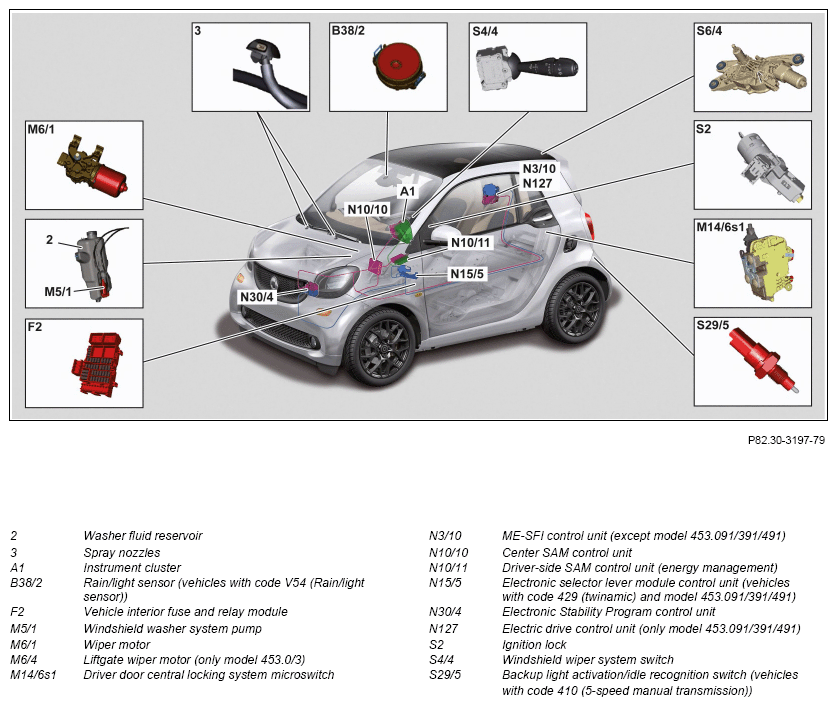

Overview Of System Components For Windshield Wiper System - GF82.30-P-9996KJ

MODEL 453.0/3/4

Courtesy of MERCEDES-BENZ USA

Shown on Model 453.3

	Component description for instrument cluster	Model 453 (except 453.091/391/491) with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1	GF54.30-P-6000KJ
		Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with 8.9 cm (3.5") color display)	GF54.30-P-6000KJE
	Component description for ME-SFI (ME) control unit	Vehicles with engine 281.910 N3/10	GF07.61-P-6000KJ
		Vehicles with engine 281.920	GF07.61-P-6000KJF
	Center SAM control unit, component description	N10/10	GF54.21-P-7011KJ
	Driver-side SAM control unit, component description	N10/11	GF54.21-P-7012KJ
	Component description for electronic selector lever module control unit	Vehicles with code 429 (Twinamic), transmission 700.4 N15/5	GF27.60-P-5163KJ
		Model 453.091/391/491	GF27.60-P-5163KJE
	Component description for electric drive control unit	Model 453.091/391/491 with engine 780 N127	GF08.20-P-3001KJE
	Component description for Electronic Stability Program control unit	N30/4	GF42.45-P-5119KJ
	Table of contents for function description of windshield wiper system		GF82.30-P-0997KJ
