Component Description For Sound System Amplifier Control Unit - GF82.62-P-5010KJ

MODEL 453.0/3/4

with CODE 810 (Sound system)

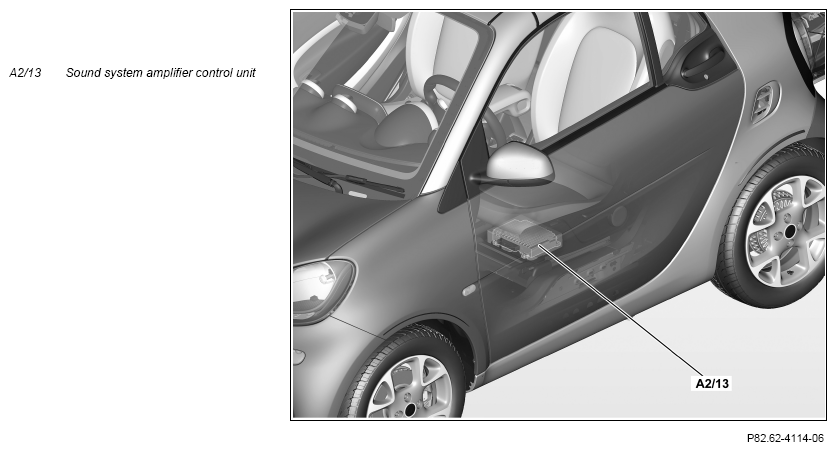

Shown on Model 453.3

Location

The sound system amplifier control unit is located under the driver seat.

Task

The sound system amplifier control unit has the following tasks:

• Receive signals
• Decoding, supporting and amplifying signals
• Transmitting signals

Receive signals

The sound system amplifier control unit receives the following signals:

• Circuit "30g" and circuit "31"
• Audio muting (MUTE) and speed signal from audio gateway control unit (N93/1) via telematics CAN (CAN A)
• Electrical wake-up
• Audio signals from radio (A2) (with code 535 (smart media system) or with code 537 (smart audio system))

Decoding, supporting and amplifying signals

• Decoding of copy-protected audio signals based on Digital Signal Processing (DSP), DSP technology
• Supporting of surround sound
• Supporting stereo entertainment channels and announcement channels (e.g. for voice output of navigation announcements, etc.)
• Amplifying decoded audio signals

Transmitting signals

The sound system amplifier control unit sends electrical signals to the following components for audio output:

• Left front door speaker (H4/5)
• Right front door speaker (H4/6)
• Left rear speaker (H4/7)
• Right rear speaker (H4/8)
• Center instrument panel speaker (H4/27)
• Bass speaker (H4/29)
• Left mirror triangle tweeter (H4/33)
• Right mirror triangle tweeter (H4/34)
• Left rear tweeter (H4/35) (model 453.0 only)
• Right rear tweeter (H4/36) (model 453.0 only)
• Left rear surround speaker (H4/54) (model 453.0/3 only)
• Right rear surround speaker (H4/55) (model 453.0/3 only)

	Sound amplifier control unit wiring diagram	Model 453.0 (except 453.091/391/491)	PE82.62-P-2101-97BBA
		Model 453.091/391/491	PE82.62-P-2101-97BEA
