Remove/Install Radiator - AR20.20-P-3865SR

ENGINE 281 in MODEL 453

ENGINE 780 in MODEL 453

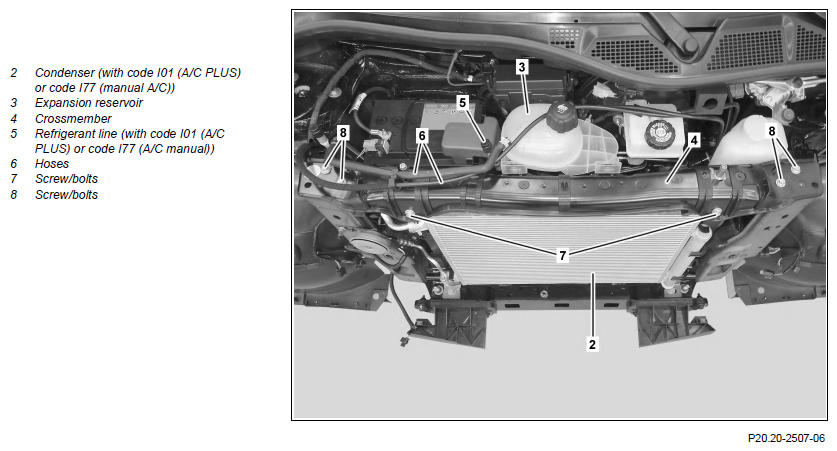

Shown on model 453 with engine 281

Courtesy of MERCEDES-BENZ USA

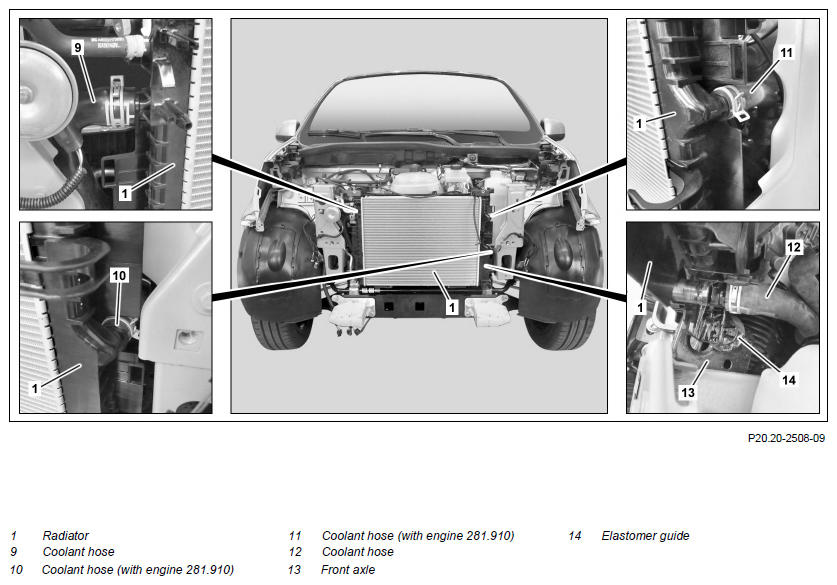

Shown on model 453 with engine 281

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Remove/install
1	Remove both lamp units at the front	Engine 281, 780 in model 453.0	AR82.10-P-4730SR
		Engine 281, 780 in model 453.3/4	AR82.10-P-4730SRA
2	Remove CMS front		AR62.10-P-1020SR
3	Drain off coolant	Engine 780 in model 453.091/391/491	AR20.00-P-1147SRE
		Engine 281 in model 453	AR20.00-P-1142SR
4	Remove condenser (2)	Engine 281 in model 453 with code I01 (Air conditioning Plus) Engine 281 in model 453 with code I77 (Air conditioning, manual)	AR83.30-P-6540SR
5	Unhook expansion reservoir (3) from crossmember (4)
6	Remove refrigerant line (5) from crossmember (4)	Engine 281, 780 in model 453 with code I01 (Air conditioning Plus) Engine 281, 780 in model 453 with code I77 (Air conditioning, manual)
7	Unclip hoses (6) from crossmember (4)
8	Remove screw/bolts (7)
9	Remove screws/bolts (8)	Screw/bolt, reinforcement to carrier	*BA62.30-P-1002-02L
10	Remove crossmember (4)
11	Detach coolant hose (9) from radiator (1)	Replace clamp if necessary. Hose clamp pliers	Figure
12	Remove coolant hose (10) from radiator (1)	Engine 281.910 in model 453 Replace clamp if necessary. Hose clamp pliers	Figure
13	Remove coolant hose (11) from radiator (1)	Engine 281.910 in model 453 Replace clamp if necessary. Hose clamp pliers	Figure
14	Remove coolant hose (12) from radiator (1)	Replace clamp if necessary. Hose clamp pliers	Figure
15	Unhook fan from cooler (1)
16	Lead out cooler (1) upwards and take off	The fan remains on the vehicle. Ensure correct seating of the elastomer guides (14).
17	Install in the reverse order
	Check
18	Check cooling system for leaktightness		AR20.00-P-1010SR

Fig 1: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
