Remove/Install Distance Warning Function Switch - AR54.70-P-0003SR

MODEL 453

with CODE 252 (proximity warning function)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

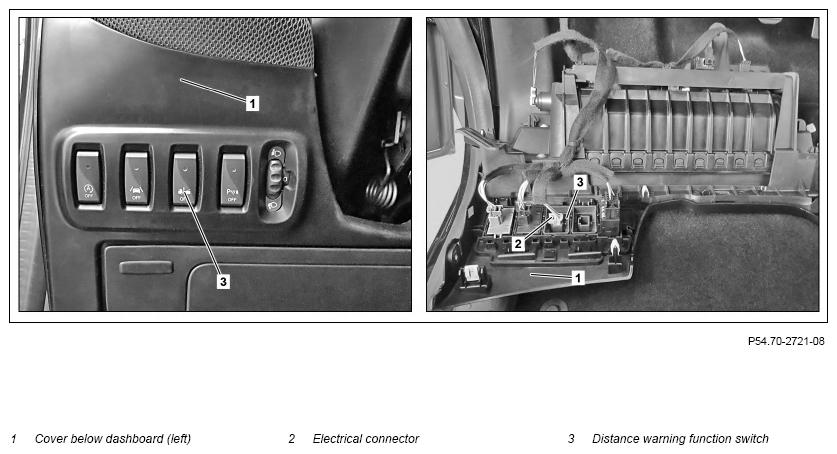

1	Detach cover under instrument panel (left) (1) with electrical connectors connected and place in footwell	Do not put electrical connector under tension. Damage can occur to the electrical connectors otherwise.	AR68.10-P-1500SR
2	Disconnect electrical connector (2)
3	Unclip distance warning function switch (3)
4	Install in the reverse order
