Remove/Install Windshield Washer System Switch - AR82.35-P-6011SR

MODEL 453

MODIFICATION NOTES

04.05.2018

Tightening torque and special tool, added.

Step 5

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove lower steering column trim.		AR68.30-P-2000SR

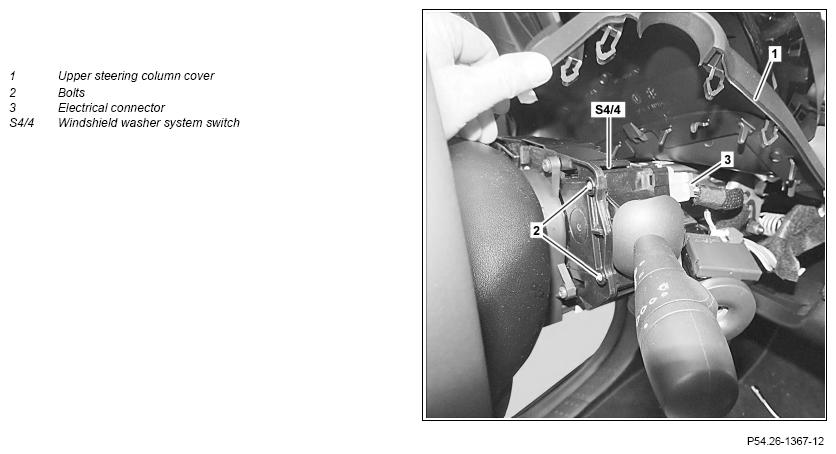

2	Turn steering wheel until the screws (2) are accessible.
3	Lift upper steering column trim (1) and disconnect electrical connector (3).
4	Remove screws (2) and remove windshield washer system switch (S4/4).
	Install
5	Lift upper steering column trim (1), position windshield wiper system switch (S4/4) and tighten with screws (2).	Screw, combination switch to steering column tube module	*BA54.25-P-1001-01A
		Torque screwdriver	Fig 1
6	Connect electrical connector (3).
	Check
7	Check all functions of the windshield wiper system switch (S4/4).
	Install
8	Position upper steering column trim (1) and install lower steering column trim.		AR68.30-P-2000SR

SWITCHES

Number	Designation			Model 453
BA54.25-P-1001-01A	Screw, combination switch to steering column tube module	Stage 1	Nm	0, 75
		Stage 2	∠°	180

Fig 1: Identifying Torque Screwdriver (001 589 81 21 00)

Courtesy of MERCEDES-BENZ USA
