Remove/install steering wheel spoke covers - AR46.10-P-0105MCC

MODEL 451.3/4

Shown on the steering wheel with code (I75) Leather sport steering wheel with steering wheel rocker switch system

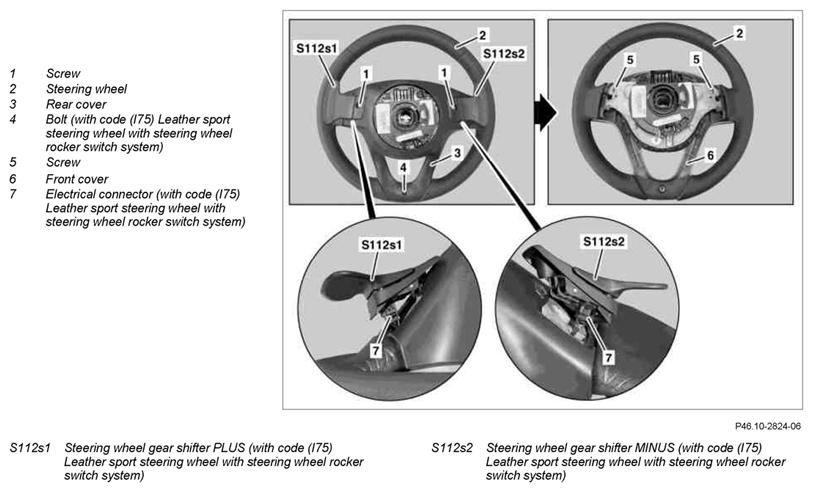

Fig 1: Identifying Steering Wheel Spoke Covers Remove/Install Components - Shown On Steering Wheel With Code (I75)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering wheel (2)		AR46.10-P-0100MCC
2	Remove bolts (1)	For vehicles without code (I75) Leather sport steering wheel with steering wheel rocker switch system the bolts (1) are screwed on immediately at the rear covering (3).
3	Remove the steering wheel gear shifter PLUS (S112s1) and steering wheel gear shifter MINUS (S112s2) until the electrical connector (7) is accessible	For vehicles with code (I75) Leather sport steering wheel with steering wheel rocker switch system
4	Detach electrical connector (7) and remove steering wheel gear shifter PLUS (S112s1) and steering wheel gear shifter MINUS (S112s2)	For vehicles with code (I75) Leather sport steering wheel with steering wheel rocker switch system
5	Unscrew bolt (4)	For vehicles with code (I75) Leather sport steering wheel with steering wheel rocker switch system Carefully tighten bolt (4) and make sure that the front covering (6) is not damaged as otherwise it will have to be replaced.
6	Remove rear covering (3) from steering wheel (2)
7	Undo bolts (5) and remove front covering (6) from steering wheel (2)	Carefully tighten bolts (5) and make sure that the front covering (6) is not damaged as otherwise it will have to be replaced. With code (V27) Cruise control/Temposet release front cover (6), detach electrical connector from cruise control switch at right and then remove front cover (6).
8	Install in the reverse order
