Remove/install paddle shift on steering wheel - AR46.10-P-8001MCC
MODEL 451.3/4 with CODE (I75) Leather sport steering wheel with steering wheel rocker switch system
| Remove/install | |||

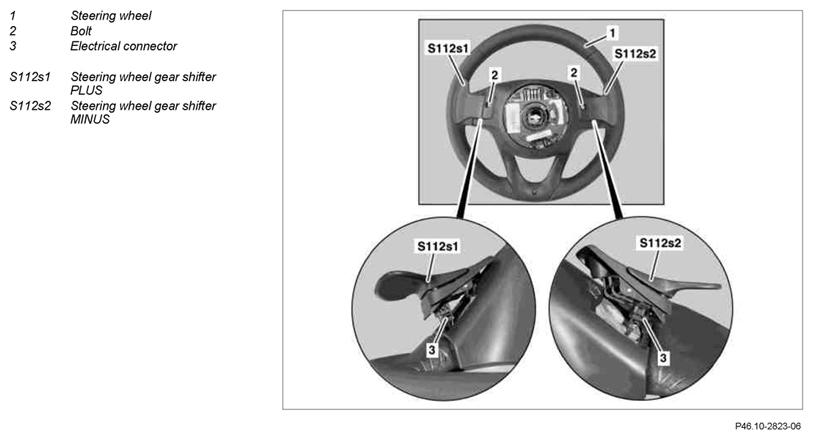

| 1 | Remove steering wheel (1) | AR46.10-P-0100MCC | |
| 2 | Remove bolts (2) | ||
| 3 | Remove the steering wheel gear shifter PLUS (S112s1) or the steering wheel gear shifter MINUS (S112s2) until the electrical connector (3) is accessible | ||
| 4 | Detach electrical connector (3) and remove steering wheel gear shifter PLUS (S112s1) or the steering wheel gear shifter MINUS (S112s2) | ||
| 5 | Install in the reverse order |
