Remove/install clock spring contact - AR46.10-P-0200MCC
MODEL 451.3/4

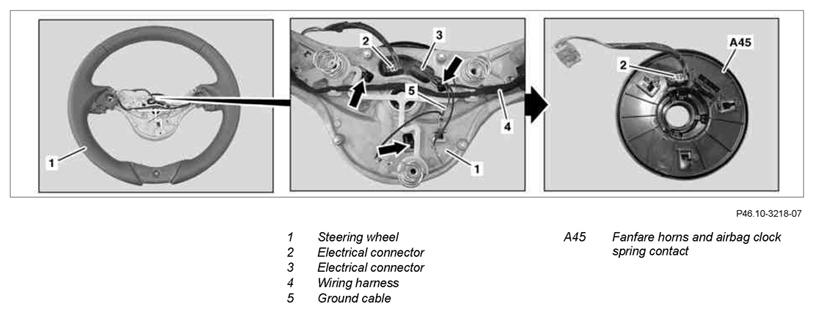

Shown on the steering wheel with code (I75) Leather sport steering wheel with steering wheel rocker switch system
| Removing | |||
| 1 | Remove airbag unit from steering wheel (1) | * Not for USA | AR91.60-P-0660MCC |
| * For USA only | AR91.60-P-0660MCU | ||
| 2 | Detach electrical connector (3) at fanfare horns and airbag clock spring contact (A45) | ||
| 3 | Release latches (arrows) of fanfare horns and airbag clock spring contact (A45) by applying suitable screwdriver to steering wheel (1) | ||
| 4 | Remove fanfare horns and airbag clock spring contact (A45) with mounted wiring harness for driver airbag unit | ||

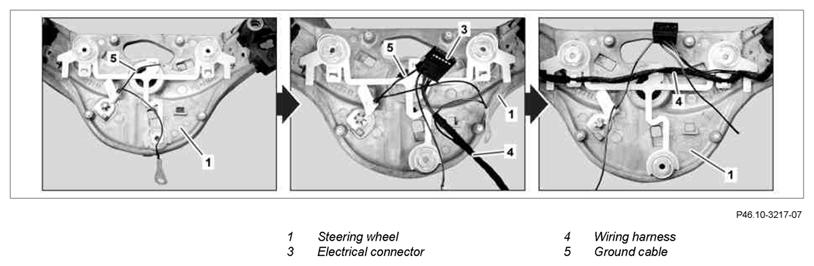

| 5 | Detach ground line (5) from electrical connection (3) and remove wiring harness (4) | Only when replacing the steering wheel (1). |
Fig 3 |
| Fig 4 | |||
| Install | |||
| 6 | Mount ground line (5) for new steering wheel (1) into electrical connection (3) of removed wiring harness (4) | Only when replacing the steering wheel (1). |
Fig 3 |
| Fig 4 | |||
| 7 | Fit wiring harness (4) to new steering wheel (1) | Only when replacing the steering wheel (1). | |
| 8 | Mount fanfare horns and airbag clock spring contact (A45) with mounted wiring harness for driver airbag unit | ||
| 9 | Mount electrical connector (3) to fanfare horns and airbag clock spring contact (A45) | ||
| 10 | Install airbag unit onto steering wheel (1) | * Not for USA | AR91.60-P-0660MCC |
| * For USA only | AR91.60-P-0660MCU |
