Remove/install kneebag - AR91.60-P-0050MCU

MODEL 451.3/4 with CODE (294) Kneebag

Shown on driver kneebag

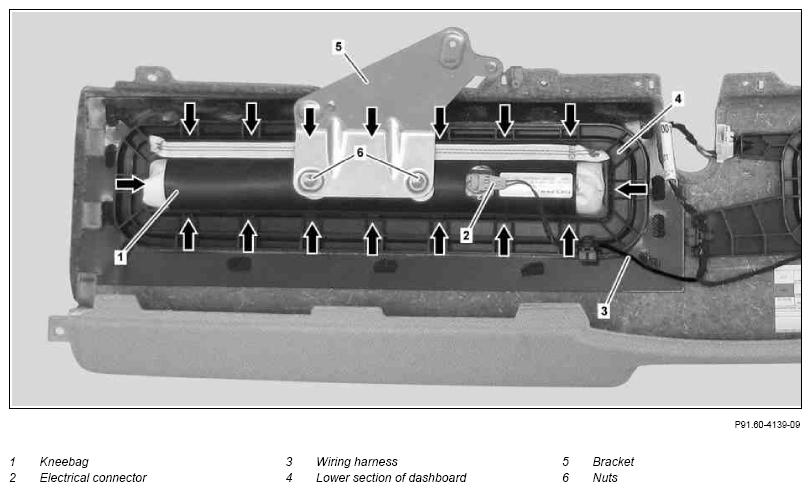

Fig 1: Identifying Kneebag Remove/Install Components - Shown On Driver Kneebag

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01SM
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
1	Disconnect ground line of battery		AR54.10-P-0003MCC
2	Remove dashboard lower section (4)		AR68.10-P-1040MCU
3	Detach electrical connector (2) from kneebag (1)	Make sure that routing of electrical wiring harness (3) is correct.
4	Unclip kneebag (1) from lower section of instrument panel (4) (arrows)	The kneebag (1) must not be disassembled as it will then have to be replaced. If the kneebag (1) is replaced, the defective kneebag (1) has to be disposed of correctly. See: ↓
		Notes on disposing of airbag and emergency tensioning retractor units	OS91.00-P-0001-01A
5	Unscrew nuts (6) and remove bracket (5)	When replacing the kneebag (1).
			*BA91.60-P-1011-01C
6	Install in the reverse order
7	Check supplemental restraint system using STAR DIAGNOSIS	When replacing the kneebag (1).	AD00.00-P-2000-04MCC
