Remove/install heated seats control unit - AR91.30-P-0030MCU

MODEL 451.3/4 with CODE (S17) Seat heaters (FFO)

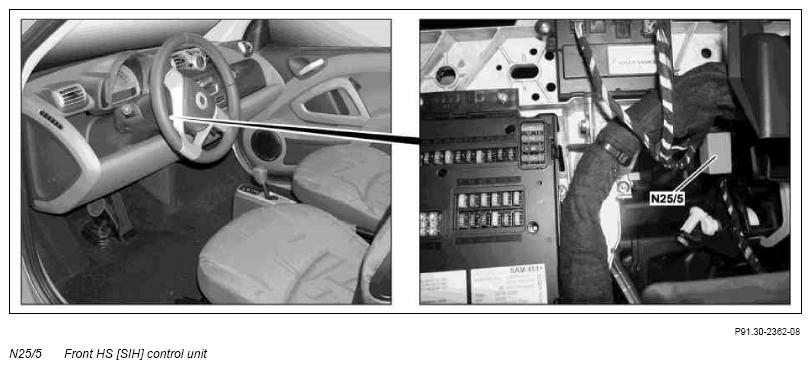

Fig 1: Identifying Heated Seats Control Unit Remove/Install Component
G10979187Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Adjust driver seat to the rear
2 Pull front HS [SIH] control unit (N25/5) out of its bracket
3 Install in the reverse order
4 Check proper operation of seat heaters
