Remove/install pedal seal - AR29.10-P-0341MCC

MODEL 451.3##/4## 1# with CODE (LHD) Left-hand drive vehicle

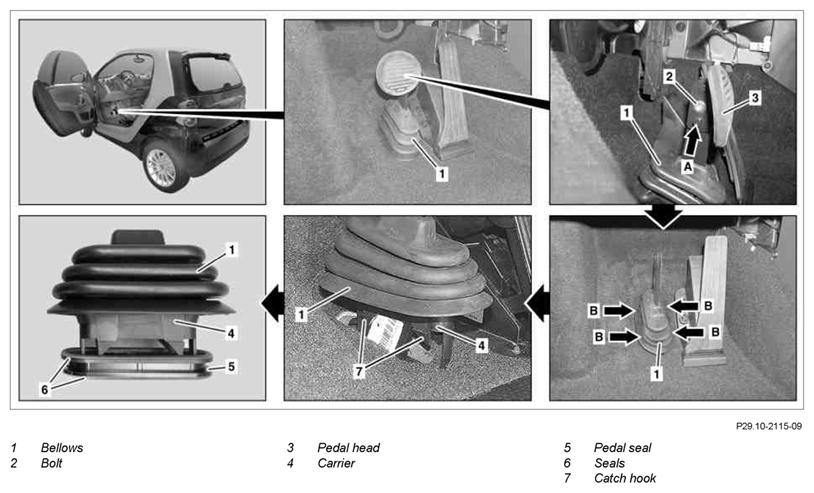

Fig 1: Identifying Pedal Seal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Adjust driver's seat to the rear
2	Unscrew bolt (2) and remove pedal head (3)		Fig 2
3	Compress the carrier (4) of the boot (1) in the marked area (arrows B) and pull upwards out of the floor panel	The carrier (4) is anchored to the floor panel with the catch hooks (7) which are located on the left and right of the carrier (4).
4	Remove boot (1) with carrier (4) upwards
5	Carefully lift off wheel brake cylinder (5)	If the seals (6) of the pedal assembly seal (5) are damaged or detached, the pedal assembly seal (5) should be replaced.
	Install
6	Insert the pedal assembly seal (5) carefully in the floor covering	Do not damage the seals (6) of the pedal assembly seal (5) as otherwise water entry may occur.
7	Position boot (1) on carrier (4)
8	Clip carrier (4) with boot (1) in the floor panel	The catch hooks (7) on the left and right of the carrier (4) must latch in position in the floor panel.
9	Fit pedal head (3) and tighten bolt (2)	The fixing drift (arrow A) on the brake pedal must match the bore in the pedal head (3).	Fig 2
