Remove/install cover of brake pedal module - AR29.10-P-0330MCC
MODEL 451.3/4
Shown on model 451.4
| Remove/install | |||
1 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Raise vehicle with vehicle lift and remove underfloor paneling |
Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. Cordless drill/driver, cordless drill |
AS00.00-Z-0010-01A |

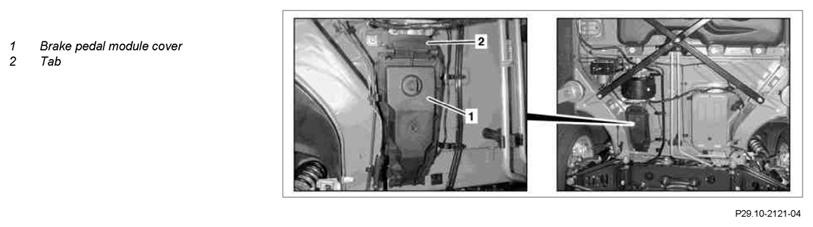

| 2 | Pull down lug (2) on cover of brake pedal module (1) and remove cover of brake pedal module (1) | ||
| 3 | Clean contact surface of the brake pedal module cover (1) at the pedal assembly | ||
| 4 | Install in the reverse order |
