Remove/install crankshaft position sensor - AR15.12-P-2133MCU
ENGINE 132.910 in MODEL 451.3/4
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||

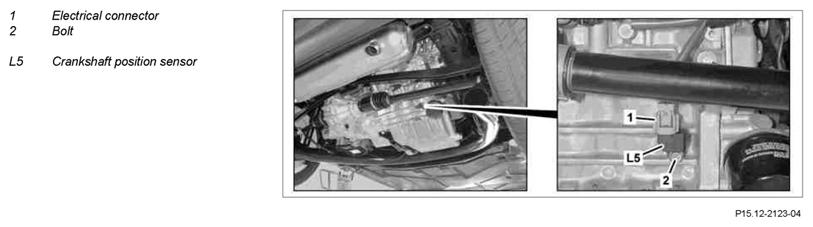

| 2 | Disconnect electrical connector (1) on crankshaft position sensor (L5) | ||
| 3 | Remove bolt (2) and pull crankshaft position sensor (L5) off the crankcase | *BA15.12-P-1002-01G | |
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory, erase if necessary | When replacing the crankshaft position sensor (L5). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 6 | Conduct engine test run and check engine around crankshaft position sensor (L5) for leaks |
ECI IGNITION SYSTEM
| Number | Designation | ENGINE 132.9 | |
|---|---|---|---|
| BA15.12-P-1002-01G | Bolt, crankshaft position sensor to crankcase | Nm | 11 |
