Remove/install coolant temperature sensor - AR15.60-P-2711MCU
ENGINE 132.910 in MODEL 451.3/4
| Remove/install | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 1 | Remove maintenance flap | ||
| 2 | Turn cooling system cap on engine radiator a half turn counterclockwise, relieve the pressure and then unscrew the cooling system cap | ||
| 3 | Remove interior flap above engine | AR88.40-P-1100-03MCC | |

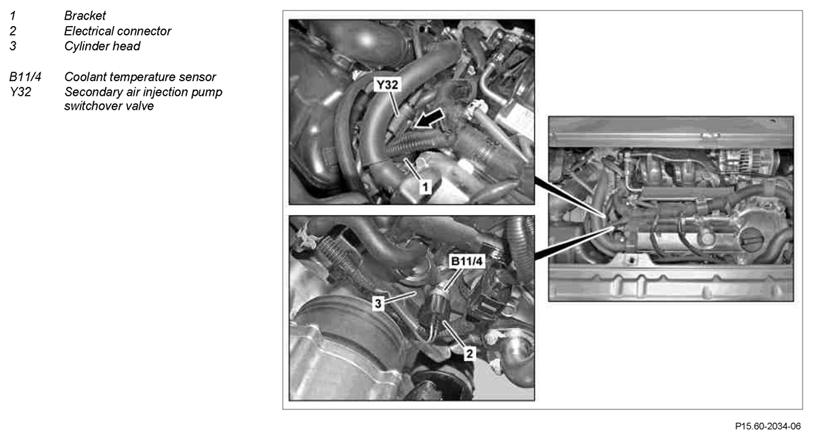

| 4 | Remove secondary air injection pump switchover valve (Y32) on holder(1) (arrow), and lay to the side | ||
| 5 | Disconnect electrical connector (2) at coolant temperature sensor (B11/4) | ||
| 6 | Remove coolant temperature sensor (B11/4) from cylinder head (3) | ||
| *BA15.60-P-1002-01B | |||
| Sealant | *BR00.45-Z-1053-01A | ||
| 7 | Install in the reverse order | ||
| 8 | Pour in coolant | AR20.00-P-1142MCU | |
| 9 | Read out fault memory, erase if necessary | When replacing the coolant temperature sensor (B11/4). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Conduct engine test run and check engine in the area of the coolant temperature sensor (B11/4) for leaks |
TEMPERATURE SENSOR
| Number | Designation | ENGINE 132.9 | |
|---|---|---|---|
| BA15.60-P-1002-01B | Coolant temperature sensor to cylinder head | Nm | 30 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1053-01A | Sealant | Q0000282V000000000 |
