Remove/install bushing of transmission mounting - AR26.10-P-0030MEV
MODEL 451.391/491 with ENGINE 780.009
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Note on high-voltage battery | AH54.10-P-0006-01MEV | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove transmitter key and mains plug | ||
| 2 | Perform disable for the high-voltage on-board electrical system | AR54.10-P-1160MEV | |
| 3 | Remove high-voltage distributor control unit | AR54.10-P-1400MEV | |
| 4 | Support transmission with hydraulic floor jack | Use suitable protective base. This prevents damage to the transmission. |
|

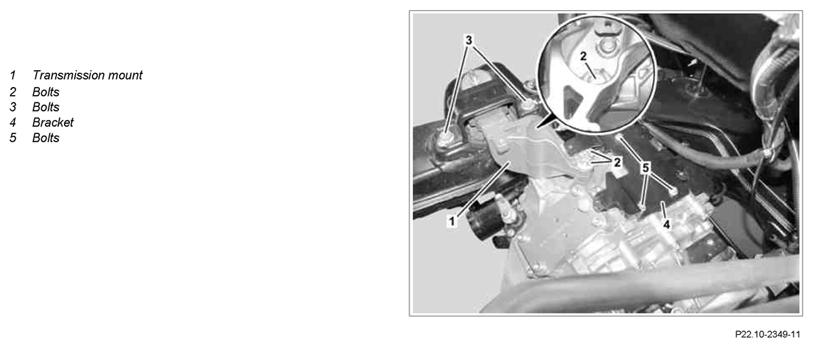

| 5 | Undo screws/bolts (5) and remove bracket (4) | ||
| 6 | Unscrew screws/bolts (2) | *BA26.00-P-1001-01E | |

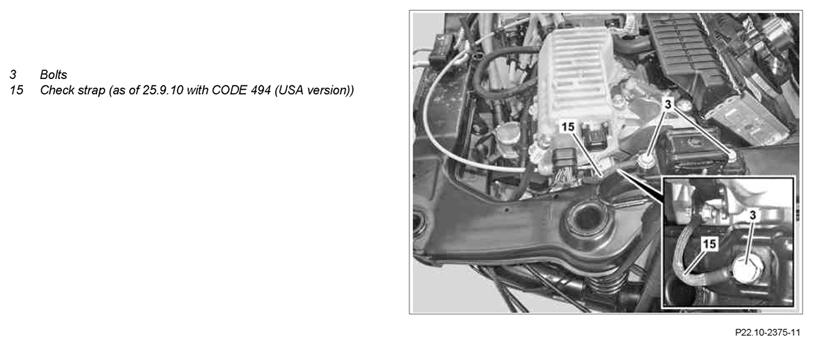

| 7 | Remove bolts (3) | *BA26.00-P-1003-01E | |
| 8 | Remove transmission bearing (1) | ||
| 9 | Install in the reverse order |
MANUAL TRANSMISSION COMPLETE
| Number | Designation | Engine 780.009 | |
|---|---|---|---|
| BA26.00-P-1001-01E | Bolt, left transmission mount to transmission carrier | Nm | 80 |
MANUAL TRANSMISSION COMPLETE
| Number | Designation | Engine 780.009 | |
|---|---|---|---|
| BA26.00-P-1003-01E | Bolt, left transmission mount to integral carrier | Nm | 56 |
