Remove/install bushing of transmission mounting - AR26.10-P-0030MCU

TRANSMISSION 717.4 in MODEL 451.3/4 with ENGINE 132.910

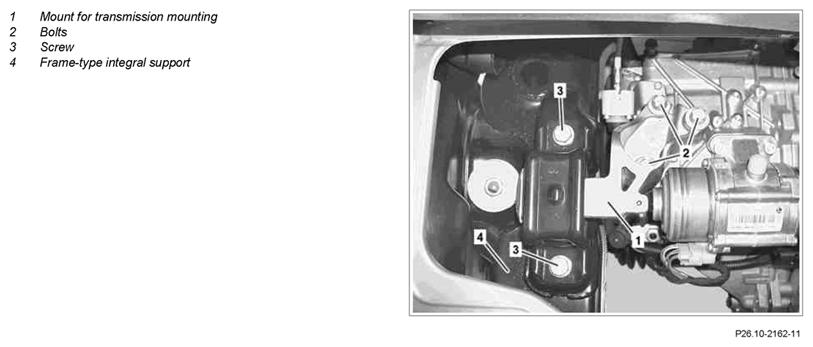

Fig 1: Identifying Transmission Mounting Bushing Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove air filter housing		AR09.10-P-1150MCU
2	Support transmission using a hand-operated hydraulic floor jack	Use a suitable protective underlay in order to avoid damage to the transmission. Trolley jack
3	Remove bolts (2) for transmission mounting bearing (1) on transmission		*BA26.00-P-1002-01D
4	Unscrew bolts (3) of bearing of transmission mounting (1) from frame-type integral support (4)		*BA26.00-P-1009-01D
5	Remove bushing of transmission mounting (1) upwards and take out
6	Install in the reverse order

COMPLETE MANUAL TRANSMISSION

Number	Designation		Transmission 717.48
BA26.00-P-1002-01D	Bolt, transmission mount to transmission	Nm	80
BA26.00-P-1009-01D	Bolt, transmission mount to frame-type integral support	Nm	56
