Remove/install sensor for sidebag/windowbag - AR91.60-P-0730MCU

MODEL 451.3 with CODE (I52) Head airbag

Shown on left side of vehicle

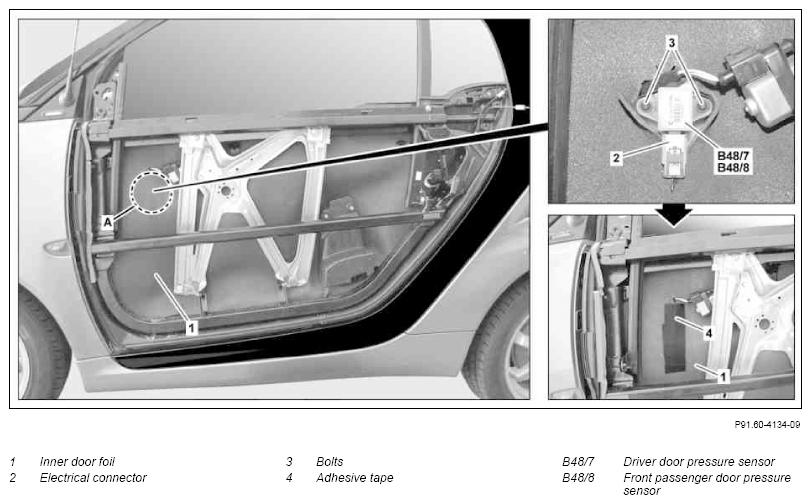

Fig 1: Identifying Sidebag/Windowbag Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01SM
1	Remove door paneling		AR72.18-P-1000MCC
2	Disconnect ground line of battery		AR54.10-P-0003MCC
3	Feel along the marked area (A) for the driver door pressure sensor (B48/7) or front passenger pressure sensor (B48/8) and carefully cut inner door foil (1) to a length of approx. 10 cm	When cutting the inner door foil (1) the electrical components and lines behind it may be damaged.
		Seal inner door foil (1) using adhesive tape (4). Adhesive tape	*BR00.45-Z-1071-02A
4	Expose driver door pressure sensor (B48/7) or front passenger door pressure sensor (B48/8)
5	Disconnect electrical connector (2) from driver door pressure sensor (B48/7) or passenger door pressure sensor (B48/8)
6	Remove bolts (3) and remove driver door pressure sensor (B48/7) or front passenger door pressure sensor (B48/8)
7	Install in the reverse order
8	Check supplemental restraint system using STAR DIAGNOSIS	When replacing the driver door pressure sensor (B48/7) or the front passenger door pressure sensor (B48/8).	AD00.00-P-2000-04MCC
