Remove/install charger feed socket - AR54.10-P-5109MEV
MODEL 451.391/491 with ENGINE 780.009
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on high-voltage battery | AH54.10-P-0006-01MEV | ||
| Note on the high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Remove/install | |||
| 1 | Remove transmitter key and mains plug | ||
| 2 | Carry out disconnection of high-voltage system | AR54.10-P-1160MEV | |
| 3 | Remove interior flap above engine | AR88.40-P-1100-03MCC | |

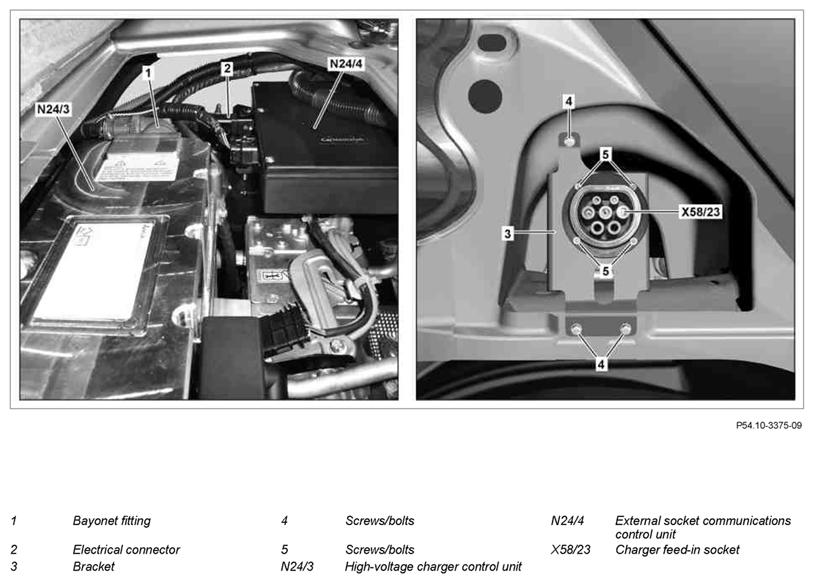

| 4 | Undo bayonet lock (1) on high-voltage charger control unit (N24/3) | ||
| 5 | Disconnect electrical connector (2) from external socket communications control unit (N24/4) | ||
| 6 | Remove fender liner in right rear fender | MODEL 451.391/491 with ENGINE 780.009 without CODE 494 (US version) | AR88.10-P-1400MCC |
| MODEL 451.391/491 with ENGINE 780.009 with CODE 494 (US version) | AR88.10-P-1400MCU | ||
| 7 | Remove rear CBS | AR88.20-P-1900MCC | |
| 8 | Unscrew screws/bolts (4) and remove bracket (3) with charger feed socket (X58/23) | ||
| 9 | Unscrew screws/bolts (5) and remove charger feed socket (X58/23) from bracket (3) | When replacing the charger feed socket (X58/23). | |
| 10 | Install in the reverse order |
