Remove/install front fender - AR88.10-P-1000MCC
MODEL 451.3/4 up to 19.3.12
Shown on vehicle with code (V07) Front fog lamps (FFO)

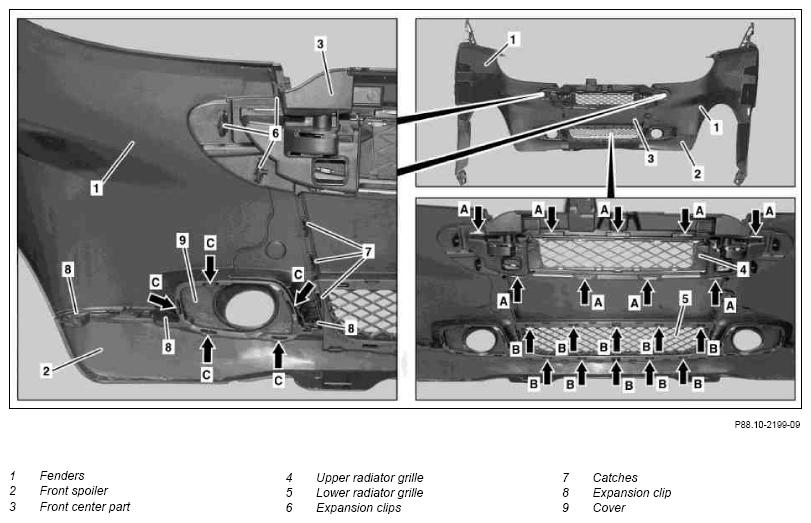

Fig 1: Identifying Front Fender Remove/Install Components - Shown On Vehicle With Code (V07) Front Fog Lamps
| Remove/install | |||
| 1 | Remove CBS front end and lay down on suitable subsurface | AR88.00-P-1010MCC | |
| 2 | Loosen catches (arrows A) on upper radiator grille (4) and remove upper radiator grille (4). | ||
| 3 | Loosen catches (arrows B) on lower radiator grille (5) and remove lower radiator grille (5). | ||
| 4 | Loosen catches (arrows C) on left and right cover (9) and remove left and right cover (9). | ||
| 5 | Remove expansion clips (8) and loosen catches between left and right fender (1) and front spoiler (2). | ||
| 6 | Remove expansion clips (6) on left and right fender (1). | ||
| 7 | Loosen catches (7) between left and right fender (1) and front center part (3). | ||
| 8 | Remove left and right fender (1) from front center part (3). | ||
| 9 | Install in the reverse order |
