Remove/install card reader on windshield - AR54.30-P-2000MCG

MODEL 451.3 with CODE (P02) car2go

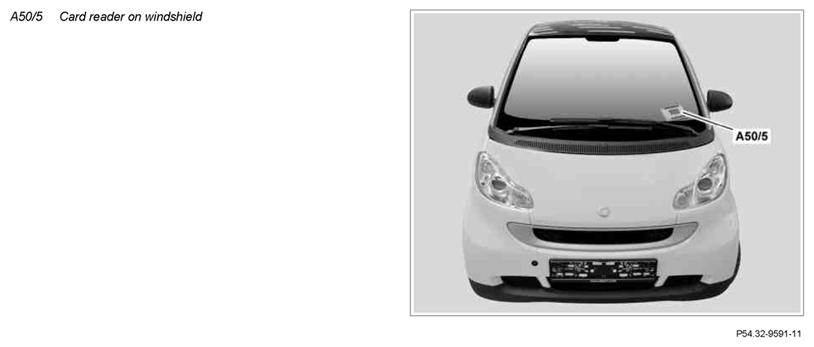

Fig 1: Identifying Card Reader On Windshield Remove/Install Component

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove card reader on windshield (A50/5) from windshield with assembly wedge	Assembly wedge	Figure
2	Disconnect electrical connectors from card reader on windshield (A50/5)
3	Remove card reader from windshield (A50/5)
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
