Remove/install front seat backrest foam section - AR91.10-P-1120MCU
MODEL 451.3/4
Shown on code (S17) Seat heaters (FFO)

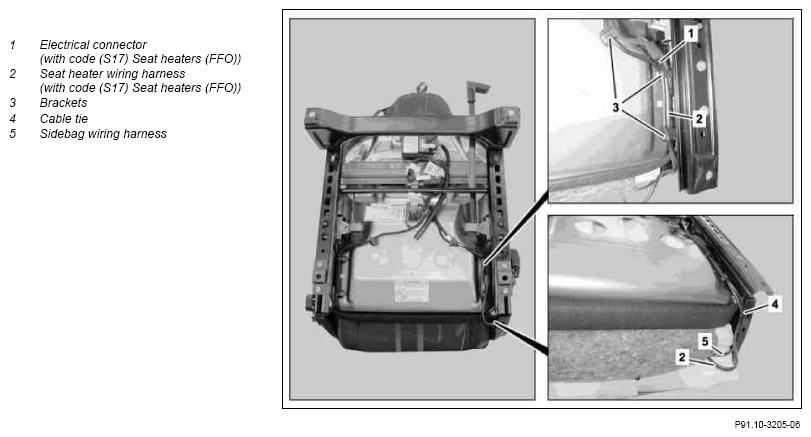

Fig 1: Identifying Front Seat Backrest Foam Section Remove/Install Components - Shown On Code (S17) Seat Heaters (FFO) (1 Of 2)

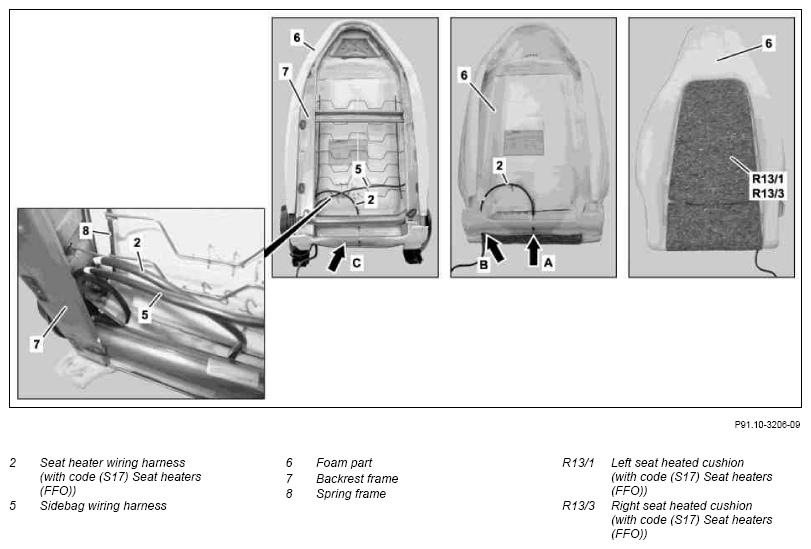

Fig 2: Identifying Front Seat Backrest Foam Section Remove/Install Components - Shown On Code (S17) Seat Heaters (FFO) (2 Of 2)
| Remove/install | |||
| 1 | Remove cover for backrest from seat | AR91.10-P-8656MCU | |
| 2 | Carefully place seat with backrest on a suitable surface | On vehicles with code (S17) Seat heaters (FFO) | |
| 3 | Expose seat heater wiring harness (2) at the brackets (3) | On vehicles with code (S17) Seat heaters (FFO) | |
| 4 | Disconnect electrical connector (1) of seat heaters | On vehicles with code (S17) Seat heaters (FFO) | |
| 5 | Place seat on its rails | On vehicles with code (S17) Seat heaters (FFO) | |
| 6 | Remove cable tie (4) | ||
| 7 | Expose sidebag wiring harness (5) and (if necessary) seat heater wiring harness (2) at backrest frame (7) and at foam part (6) (arrow B) | Remove cable ties for fastening sidebag wiring harness (5) and (if necessary) cable ties for fastening seat heater wiring harness (2). Pay attention to installation position of cable ties. |
|
| 8 | Route lower area (arrow C) of foam section (6) forward between backrest frame (7) and seat cushion | ||
| 9 | Remove foam section (6) upward | See: ↓ Remove/install heated cushion at front seat backrest |
AR91.30-P-0006MCU |
| 10 | Install in the reverse order |
