Remove/install transmission - AR26.10-P-0020MEX
MODEL 451.390/392/490/492 with ENGINE 780.993
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on the voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

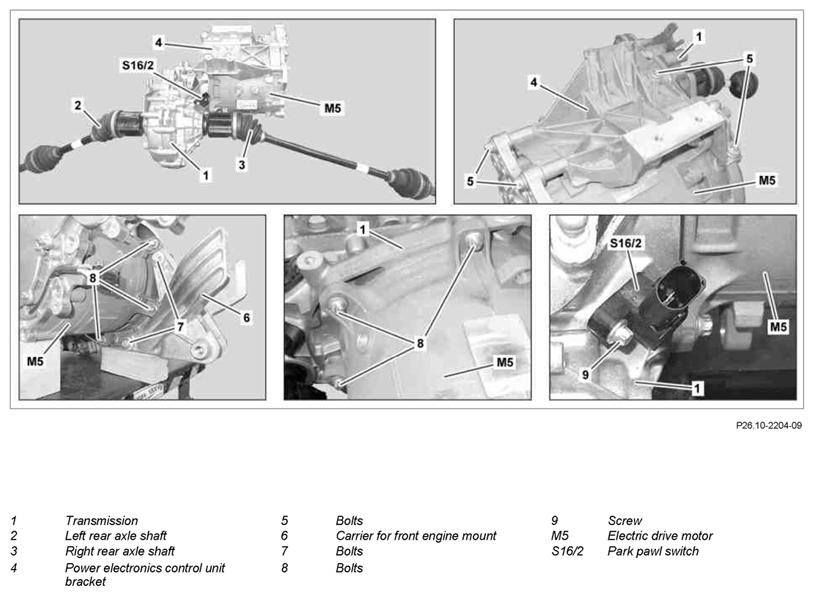

| 1 | Remove electric motor drive (M5) with transmission (1) | AR08.10-P-0005MEX | |
| 2 | Remove left rear axle shaft (2) and right rear axle shaft (3) from transmission (1) | MODEL 451.390/392/490/492 with ENGINE 780.993 without CODE 494 (US version) | AR35.30-P-0620MCC |
| MODEL 451.390/392/490/492 with ENGINE 780.993 with CODE 494 (US version) | AR35.30-P-0620MCU | ||
| 3 | Remove screws/bolts (5) and remove power electronics control unit bracket (4) | ||
| 4 | Remove screw/bolt (9) and remove park pawl switch (S16/2) | When replacing the transmission (1). | |
| 5 | Unscrew screws/bolts (7) and remove carrier for front engine mount (6) | When replacing the transmission (1). |
*BA22.10-P-1012-01M |
| 6 | Unscrew screws/bolts (8) and remove transmission (1) from electric drive motor (M5) | *BA26.00-P-1002-01E | |
| 7 | Install in the reverse order |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | ENGINE 780.993 | |
|---|---|---|---|
| BA22.10-P-1012-01M | Screw/bolt, carrier for front engine mount to transmission | Nm | 80 |
MANUAL TRANSMISSION COMPLETE
| Number | Designation | ENGINE 780.993 | |
|---|---|---|---|
| BA26.00-P-1002-01E | Bolt, transmission to engine | Nm | 23 |
