Remove/install additional instruments - AR54.30-P-6080MCF
MODEL 451.3/4 as of 31.8.10
with CODE (V31) Cockpit clock and tachometer package
except CODE (P02) car2go
| Remove/install | |||
| 1 | Remove instrument cluster (A1) | * not for USA | AR54.30-P-6015MCC |
| * for USA only | AR54.30-P-6015MCU | ||

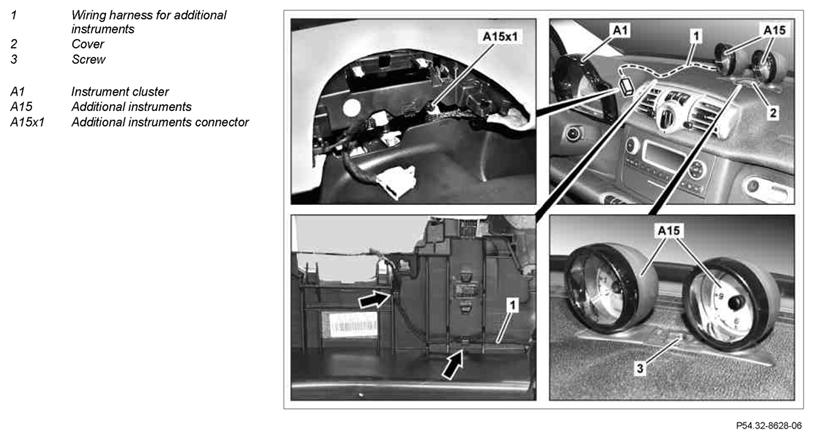

| 2 | Remove covering (2) of additional instruments (A15) | ||
| 3 | Remove bolt (3) of additional instruments (A15) | ||
| 4 | Adjust driver seat to the rear | ||
| 5 | Unhook wiring harness for additional instruments (1) from holders (arrows) at bottom of instrument panel upper section | ||
| 6 | Disconnect the additional instruments connector (A15x1) located in the installation opening of the instrument cluster (A1) | ||
| 7 | Remove additional instruments (A15) | ||
| 8 | Install in the reverse order | ||
| 9 | Set clock of additional instruments (A15) |
