Remove/install additional instruments - AR54.30-P-6080MCC

MODEL 451.3/4 up to 30.8.10

with CODE (V31) Cockpit clock and tachometer package

except CODE (P02) car2go

MODEL 451.3

with CODE (V31) Cockpit clock and tachometer package

with CODE (P02) car2go

with instrument panel up to production date 30.8.10

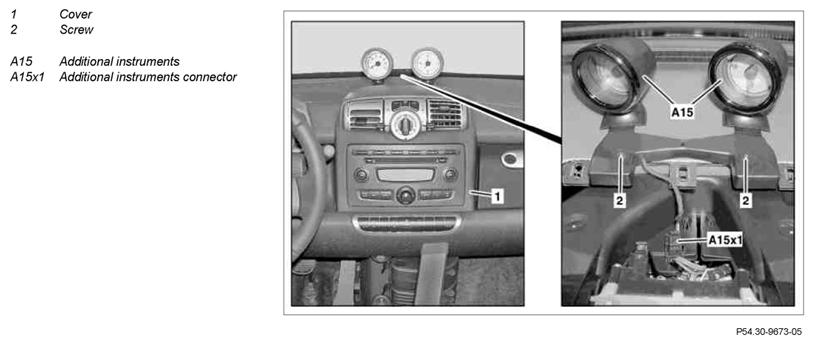

Fig 1: Identifying Additional Instruments Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1) on center console		AR68.20-P-2350MCC
2	Separate additional instruments connector (A15x1)
3	Undo bolts (2) and remove additional instruments (A15)
4	Install in the reverse order
5	Set clock of additional instruments (A15) if necessary
