Remove/Install Fuel Tank Vent Line - AR47.25-P-0009SR
MODEL 453 with ENGINE 281
MODIFICATION NOTES
| 06.07.2016 | Operation step 2.3 added | 453.362/462 |

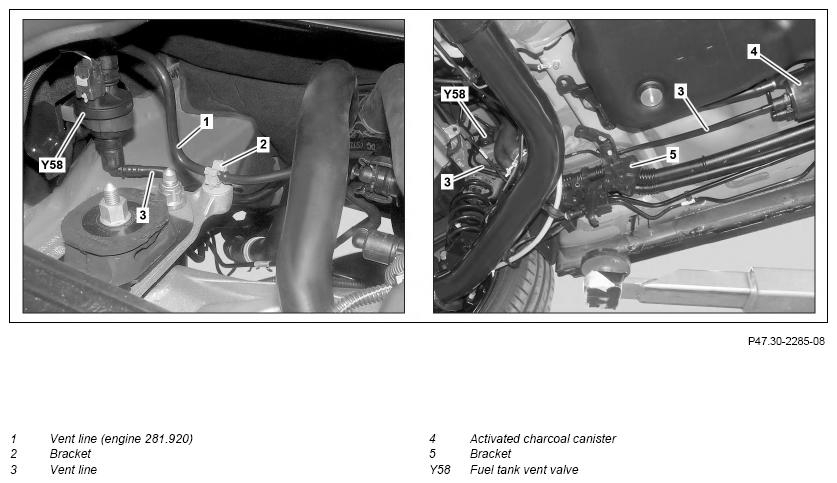

Shown on ENGINE 281.920

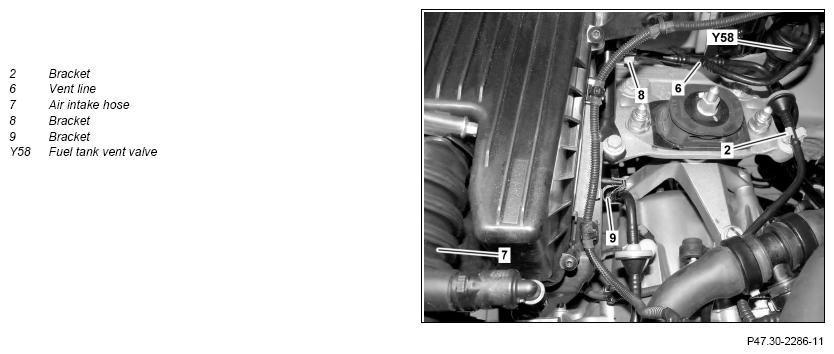

Engine 281.910
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove fan | AR20.40-P-5614SR | |
| 2.1 | Unlock vent line (1) on fuel tank bleed valve (Y58) and intake manifold and detach | Model 453 with engine 281.920 | |
| 2.2 | Unlock vent line (6) on fuel tank bleed valve (Y58), charge air pipe and air intake hose (7) and detach | Model 453 with engine 281.910 | |
| 2.3 | Remove bracket screw/bolt on oil separator, unlock vent line (6) on crankcase ventilation and detach | Model 453.362/462 | |
| 3.1 | Unclip vent line (1) from bracket (2) and take off | Model 453 with engine 281.920 | |
| 3.2 | Unclip vent line (6) from brackets (2, 8, 9) and take off | Model 453 with engine 281.910 | |
| 4 | Lift fuel tank bleed valve (Y58) and unlock vent line (3) on fuel tank bleed valve (Y58) and detach | ||
| 5 | Unclip vent line (3) in engine compartment | ||
| 6 | Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Raise vehicle with vehicle lift |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |
| 7 | Remove rear underfloor paneling | ||
| 8 | Unlock vent line (3) on activated charcoal canister (4) and detach | ||
| 9 | Unclip vent line (3) on underfloor and bracket (5) and remove | ||
| 10 | Install in the reverse order |
