Heated seats control unit, component description - GF91.30-P-5214MCC
MODEL 451.3 /4 with CODE (S17) Heated seats (FFO)
Location

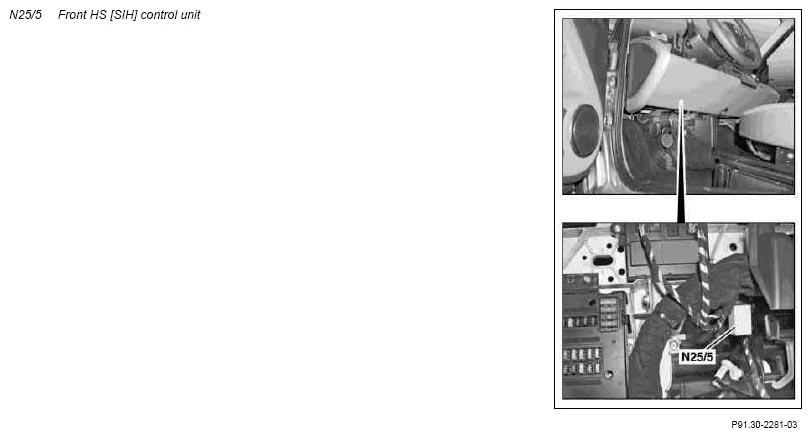

The heated seats control unit is in the driver footwell above the accelerator pedals.
Task
The heated seats control unit controls the actuation of the left seat heated cushion (R13/1) and the right seat heated cushion (R13/3). The heat-up time is map-controlled and dependent on the interior temperature and the request from the left seat heater switch (S6/1s3) and the right seat heater switch (S6/1s4).
The interior temperature is determined by the heated seats control unit via an integrated sensor.
