Driver airbag, component description - GF91.60-P-4037MCU

MODEL 451.3 /4

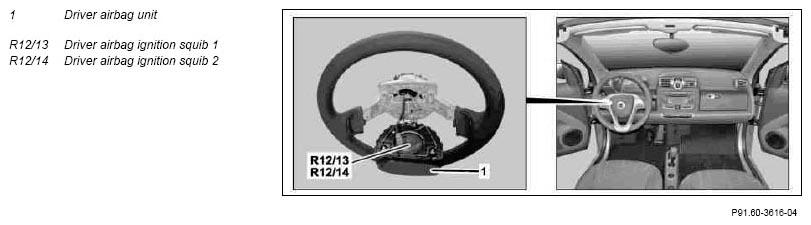

Fig 1: Identifying Driver Airbag Unit, Driver Airbag Ignition Squib 1 And 2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The airbag unit and the associated squibs are installed in the steering wheel.

Task

The driver is protected from injury in the event of a frontal impact by the airbag unit.

The two-stage airbag unit is deployed by means of squib ignition by the restraint systems control unit (N2/7).
