Belt tension sensor component description - GF91.60-P-4108MCU
MODEL 451.3 /4
Location

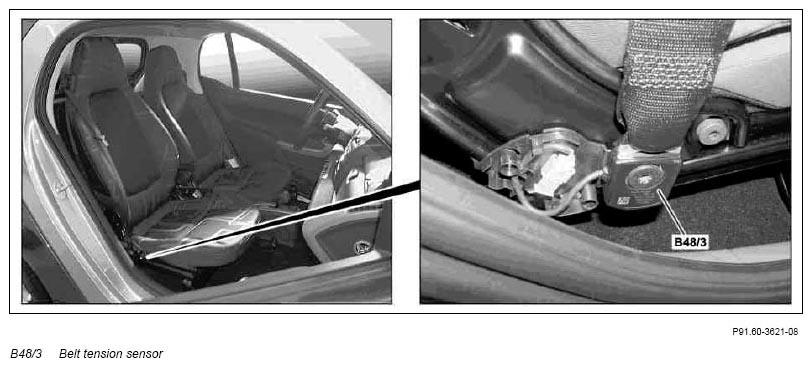

The belt tension sensor is located at the belt end fitting of the seat belt on the front passenger seat.
Task
The belt tension sensor measures the tension of the belt. This value is read in by the Weight Sensing System (WSS) control unit (N110) to enable any corrections to be made to the weight classification.
