Remove/install sensor for sidebag/windowbag - AR91.60-P-0730MCU

MODEL 451.3 with CODE (I52) Head airbag

Shown on left side of vehicle

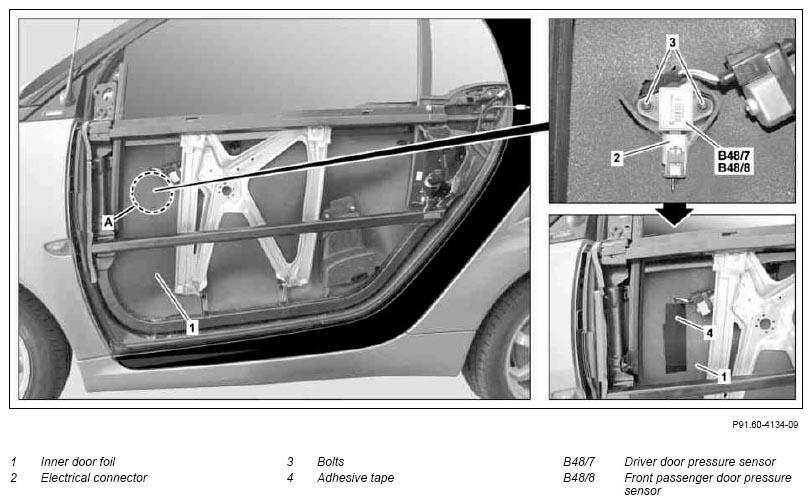

Fig 1: Identifying Sensor For Sidebag/Windowbag Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01SM
1	Remove door paneling		AR72.18-P-1000MCC
2	Disconnect ground line of battery		AR54.10-P-0003MCC
3	Feel along the marked area (A) for the driver door pressure sensor (B48/7) or front passenger pressure sensor (B48/8) and carefully cut inner door foil (1) to a length of approx. 10 cm	When cutting the inner door foil (1) the electrical components and lines behind it may be damaged. Installation:  Seal inner door foil (1) using adhesive tape (4).
		Adhesive tape	*BR00.45-Z-1071-02A
4	Expose driver door pressure sensor (B48/7) or front passenger door pressure sensor (B48/8)
5	Disconnect electrical connector (2) from driver door pressure sensor (B48/7) or passenger door pressure sensor (B48/8)
6	Remove bolts (3) and remove driver door pressure sensor (B48/7) or front passenger door pressure sensor (B48/8)
7	Install in the reverse order
8	Check supplemental restraint system using STAR DIAGNOSIS	When replacing the driver door pressure sensor (B48/7) or the front passenger door pressure sensor (B48/8).	AD00.00-P-2000-04MCC
