Head/thoraxbag, component description - GF91.60-P-4100MCU

MODEL 451.3 /4

Location

The head/thoraxbag units are located in the outboard side of the driver and front passenger seat backrests.

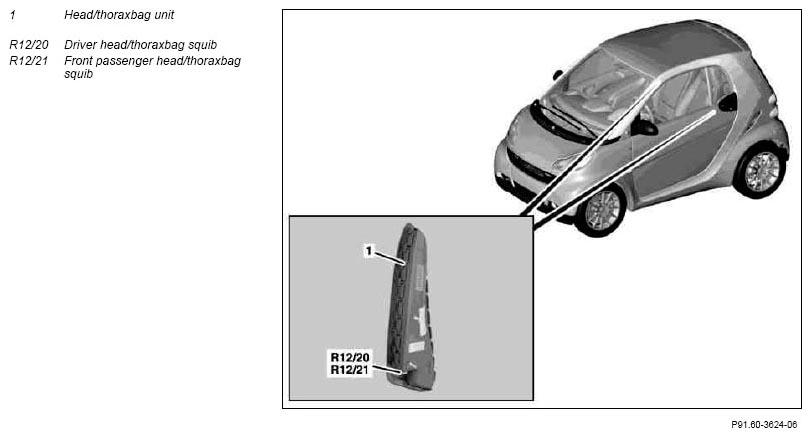

Fig 1: Identifying Head/Thoraxbag Unit, Driver And Front Passenger Head/Thoraxbag Squib

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The head/thoraxbag units protect the driver and the front passenger from injury in the head and thorax areas in the event of a side-on collision.

The integrated gas generator is deployed by means of squib ignition by the restraint systems control unit (N2/7).
